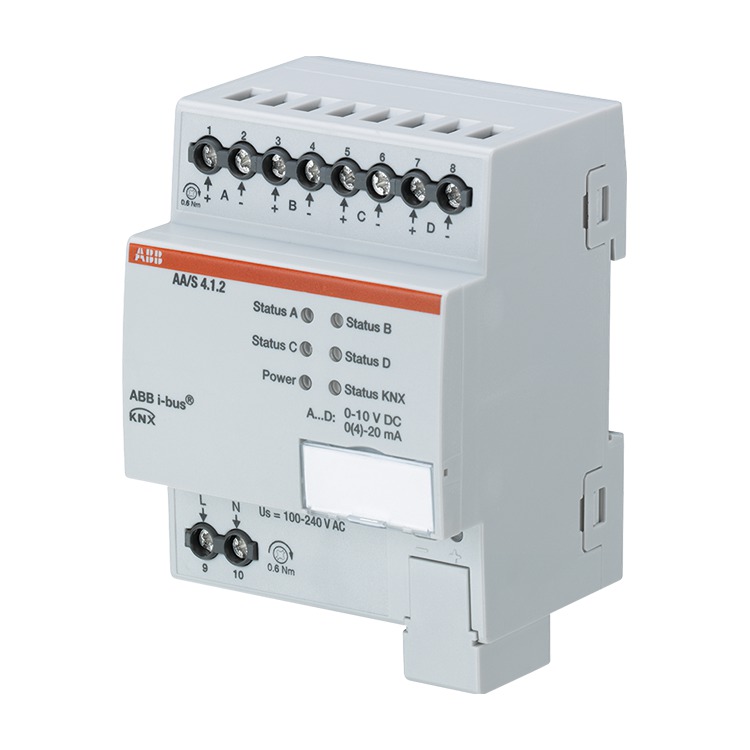

Analogue actuator
4gang

Take over in my parts list / tender specifications

Functions at a glance

  • 4gang analogue actuator in a rail-mounted housing.
  • The analogue actuator converts KNX telegrams into voltage or current signals.
  • Thes analogue output signals are used to influence control processes.
  • In dependence of information that is transmitted via the bus system, the function of heating, air-conditioning or ventilation devices can be adjusted, for example.
  • Outputs: 4
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 70 mm x 64 mm
  • Module width: 4
  • Division units: 4
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:AA/S 4.1.2
    Order No.:2CDG110202R0011
    EAN:4016779962377
    Customs tariff number:85371091
    Price group:44
    Price:365,00 EUR plus VAT
    Info sheet:Download PDF
