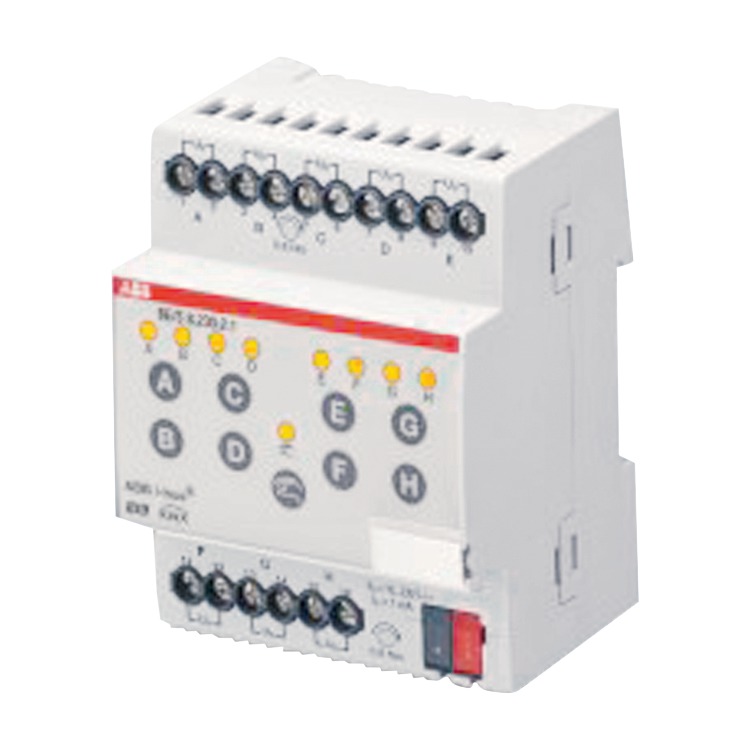

Binary input, 8gang, 10-230 V, MDRC

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • The device detects eight 10 to 230 V AC/DC signals. Input status display via 8 yellow LEDs. A maximum of 8 input signals can be recorded. One button per channel for manual operation. Supplied via ABB i-bus®.
  • Control element: LED red
  • Display elements: 8 yellow LEDs
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
  • Module width: 4

    Order details

    Article No.:BE/S 8.230.2.1
    Order No.:2CDG110093R0011
    EAN:4016779710770
    Customs tariff number:85371091
    Price group:45
    Price:384,00 EUR plus VAT
    Info sheet:Download PDF
