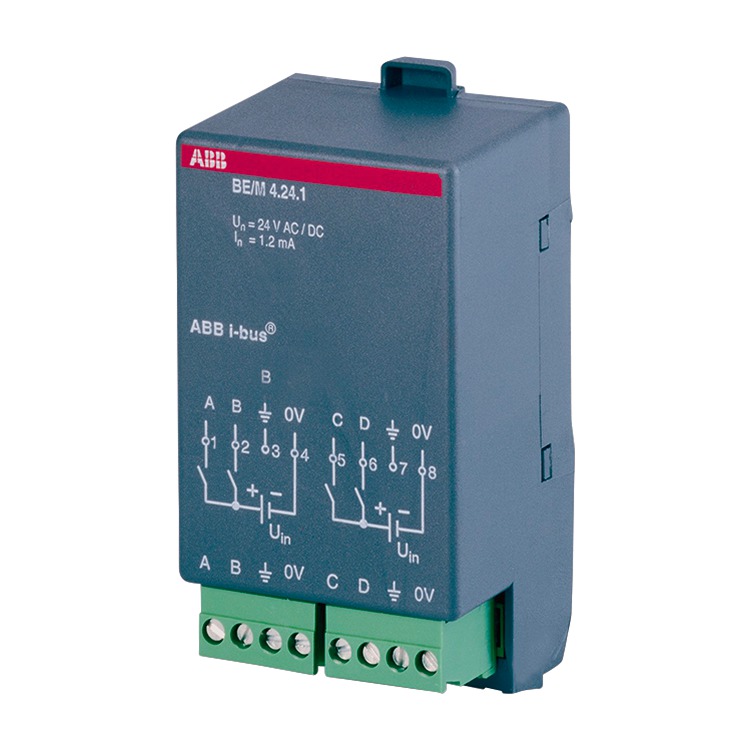

Binary input module
4gang, 12/24 V

Take over in my parts list / tender specifications

Functions at a glance

  • Module for insertion into the basic room controller unit.
  • It has 4 inputs for connecting 12/24 V contacts (AC or DC).
  • The voltage must be provided externally.
  • Protection class (device): IP 20
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 49 mm x 42 mm x 93 mm
  • For software and description please check the current Online-Catalogue.

    Order details

    Article No.:BE/M4.24.1
    Order No.:2CDG110006R0011
    EAN:4016779583121
    Customs tariff number:85389091
    Price group:44
    Price:151,00 EUR plus VAT
    Info sheet:Download PDF
