Switch/blind actuator, 16 A
24gang

SAH/S24.16.7.11
Take over in my parts list / tender specifications

Functions at a glance

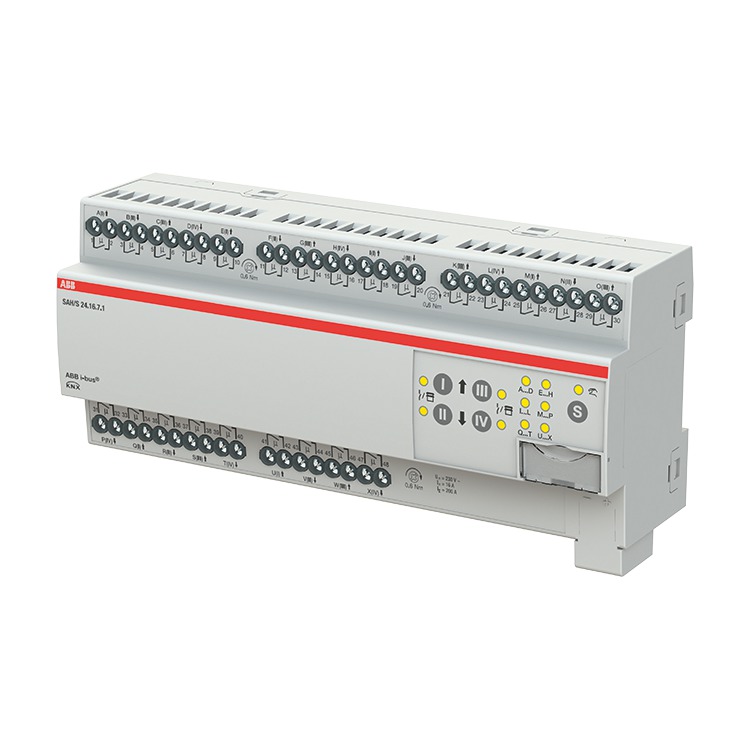

  • The 16 A combined actuator has 24 independent switching relays with which individual electrical loads or 230 VAC blinds can be switched in pairs via the ABB i-bus® KNX.
  • Manual local operation of the outputs is possible.
  • The switching or travel status of the output is displayed.
  • Manual operation of the device can be blocked.
  • This is a KNX device and requires no additional power supply.
  • Control element: Manual actuation possibility of the inputs/outputs.
  • Display elements: Status/control display via LEDs
  • Rated voltage: 230 V
  • Rated frequency: 50 Hz / 60 Hz
  • Power dissipation: 9 W
  • Outputs: 24 electronic output, potential free
  • suitable for: AC1
    • Rated current: 16 A, cos φ0.8
  • suitable for: AC3
    • Rated current: 6 A, cos φ0.45
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 210 mm x 64 mm
  • Module width: 12
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:SAH/S24.16.7.1
    Order No.:2CDG110252R0011
    EAN:4016779066860
    Customs tariff number:85371091
    Price group:45
    Price:724,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Technical manual
    Software
