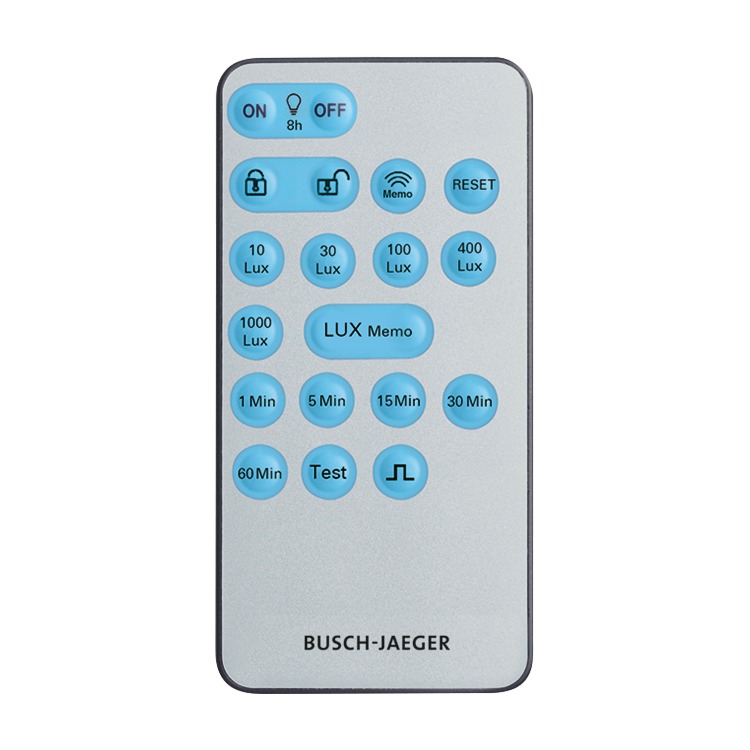

IR service remote control
Functions at a glance
- For Busch-Watchdog Presence tech BasicLINE Corridor 6818 U.
- For Busch presence detector flex sensor 64753-... and 64755-...
- For Busch-Jaeger presence detector complete devices 6817/xx-xxx- and 6819/xx-xx.
- The following functions/settings can be implemented.
- Continuous light on/off (8 h).
- Setting of the brightness limit value.
- Setting of the current ambient light value as the brightness limit value.
- Setting of switch-off delay or short-time pulse.
- Saving and duplication of the saved values.
- Activate test mode.
- Reset to factory default settings.
- Activation/deactivation of the button lock.
- Power supply: lithium button cell battery Type CR2032.
- Range: frontal 3 m
- Rated voltage: 3 V-

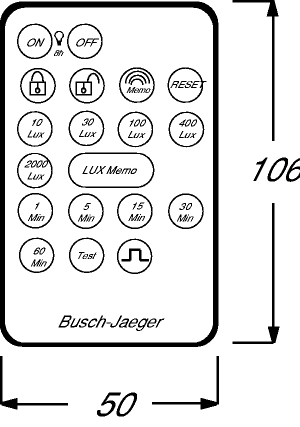

- Dimensions: (L x W x D): 106 mm x 50 mm x 8 mm
- Battery included in delivery.
Order details
| Article No.: | 6843 |
| Order No.: | 2CKA006800A2511 |
| EAN: | 4011395133354 |
| Customs tariff number: | 85437090 |
| Price group: | 29 |
| Price: | 35,80 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Dimensions
Busch-Watchdog Presence tech IR manual transmitter 6843 for 6818 U
