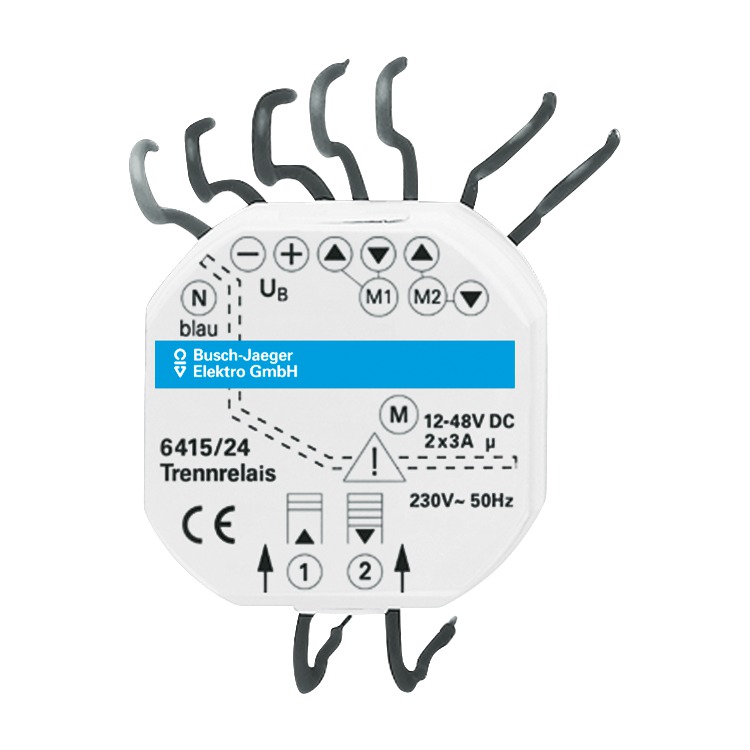

Busch-Blind control II cut-off relay DC drives
2gang
Functions at a glance
- For jointly switching 2 blind drives via a 230 V contact maker (UP/DOWN) (e.g. 6411 U/x-101).
- For grouping more than 2 blinds, several cut-off relays can be controlled parallel.
- For installation in commercially available SM-or flush mounted boxes.
- The device requires an external supply voltage of 12-48 V DC.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Outputs: 2 Normally open contact
- Rated current: 3 A
- Temperature range (device): -25 °C - 50 °C
Order details
| Article No.: | 6415/24 |
| Order No.: | 2CKA006410A0363 |
| EAN: | 4011395019672 |
| Customs tariff number: | 85340090 |
| Price group: | 19 |
| Price: | 99,00 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates

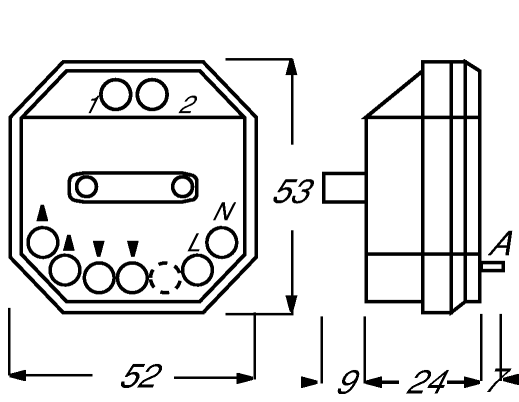

Dimensions
Busch-Blind control II cut-off relay 6415 and 6415/24

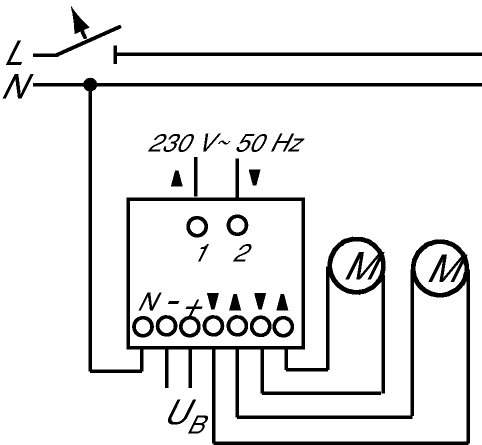

Wiring diagram
Cut-off relay 6415/24 for external 24V DC operation via +/- terminals.
Operation can take place via any signal transmitter for blind control systems with 230V~ contacts.
