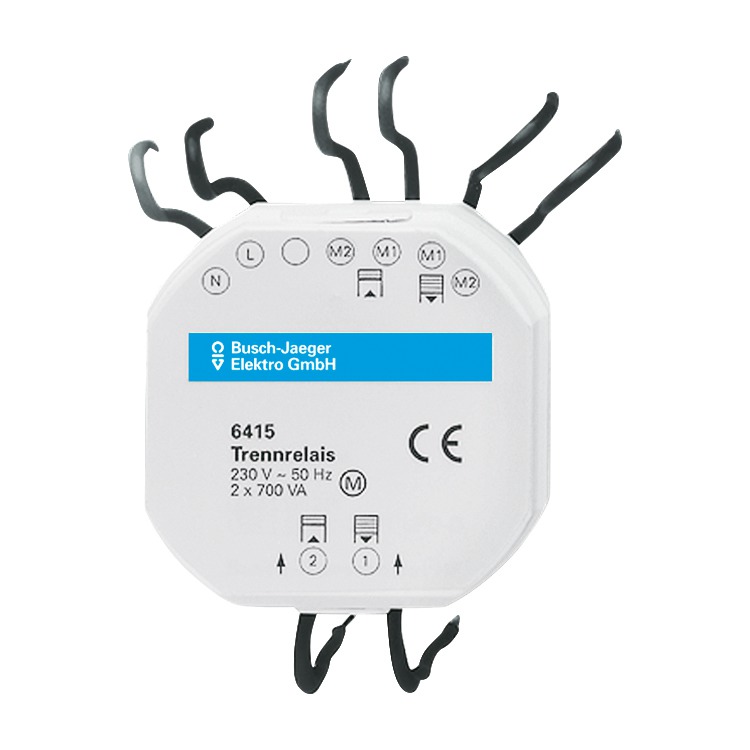

Busch-Blind control II cut-off relay
2gang
Functions at a glance
- For jointly switching 2 blind drives via a 230 V contact maker (UP/DOWN) (e.g. 6411 U/x-101).
- For grouping more than 2 blinds, several cut-off relays can be controlled parallel.
- For installation in commercially available SM-or flush mounted boxes.
- Rated voltage: 230 V~, +10 % / -10 %
- Rated frequency: 50 Hz
- Outputs: 2 Normally open contact
- Rated output: 690 VA
- Rated current: 3 A, cos φ0.5
- Temperature range (device): -25 °C - 50 °C
Order details
| Article No.: | 6415 |
| Order No.: | 2CKA006410A0302 |
| EAN: | 4011395896907 |
| Customs tariff number: | 85340090 |
| Price group: | 19 |
| Price: | 96,60 EUR plus VAT |
| Info sheet: | Download PDF |
Downloads
Instruction manual
Certificates
Tips / Tricks
Dimensions
Busch-Blind control II cut-off relay 6415 and 6415/24

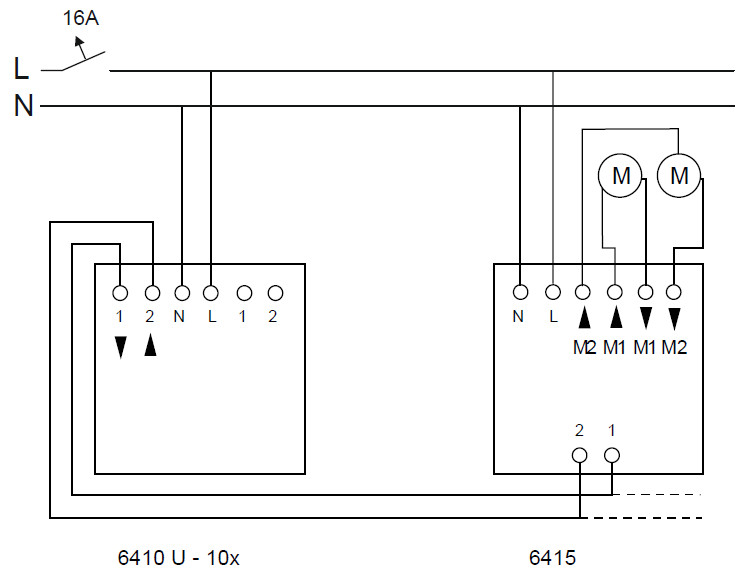

Wiring diagram
Busch-Blind control insert 6411 U-101 with cut-off relay 6415 for parallel control of two drives. If required several 6415 can be used in parallel.
Operation can take place via any signal transmitter for blind control systems with 230V~ contacts.
Busch-Blind control insert 6411 U-101 with cut-off relay 6415 for parallel control of two drives. If required several 6415 can be used in parallel.
Operation can take place via any signal transmitter for blind control systems with 230V~ contacts.
