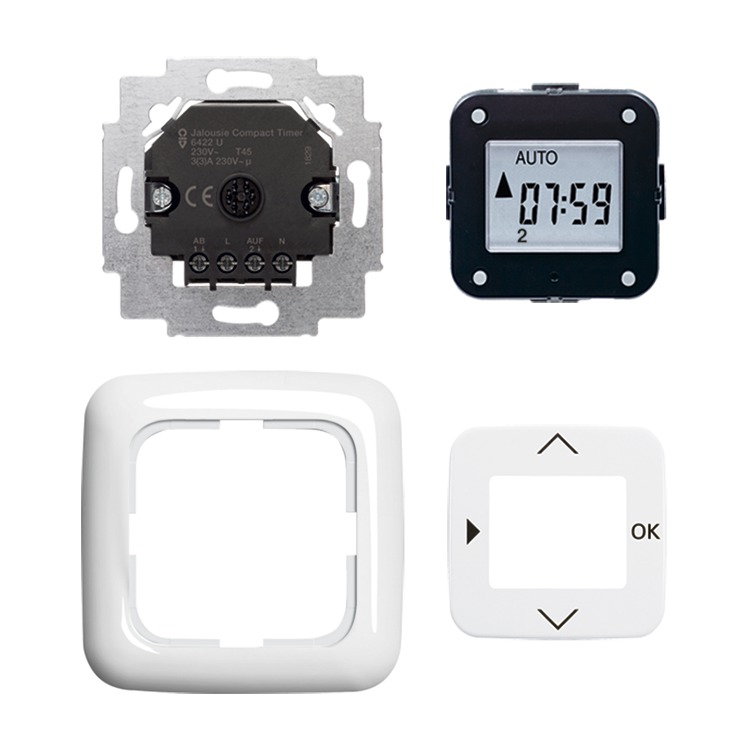

Blind compact timer, complete set

Take over in my parts list / tender specifications

Functions at a glance

  • Suitable for blind and roller blind drives with mechanical or electronic limit switch shut-off.
  • Without extension unit input.
  • Consisting of blind compact timer 6422 U.
  • Consisting of the Reflex SI cover plate for timer control element 6435-214.
  • Consisting of Reflex SI cover frame, 1gang 2511-214.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Outputs: 2 Normally open contact
  • Rated output: 690 VA
  • Rated current: 3 A, cos φ0.5
  • Temperature range (device): 0 °C - 45 °C
    • RAL colour number: Ähnlich 9010

    Order details

    Article No.:6422 UJ-214
    Order No.:2CKA006410A0411
    EAN:4011395271131
    Customs tariff number:85365080
    Price group:19
    Price:109,00 EUR plus VAT
    Info sheet:Download PDF
