Electrothermal Valve Drives

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For the actuation of heaters and cooling ceilings in connection with conventional room temperature controllers (e.g., 1094 U) or KNX, or free@home heating/valve actuators (e.g., 6164/46, 6254/0.XX)).
  • The Filament Transformer 6190/49-101 can be used as the power supply.
  • With function display (opened or closed).
  • de-energized when closed
  • Max. opening/closing time: 3.5 min
  • For installing, a suitable valve adapter is required.
  • Connecting cable: 1.0 m (pluggable)
  • Power input: 40 mA (approx. 1 W)
  • Inrush current: < 300 mA (max. 2 min)
  • Rated voltage: 24 V
  • Rated frequency: 0 Hz / 60 Hz
  • Protection class (device): IP 54
  • Dimensions: (L x W x D): 59 mm x 45 mm x 53 mm

    Order details

    Article No.:6164/11-102
    Order No.:2CKA006151A0258
    EAN:4011395213049
    Customs tariff number:90329000
    Price group:42
    Price:39,10 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Technical manual
      Certificates
      Dimensions
      Wiring diagram

      Related products

      Compatible with
      Page 1 of 2
      Item was added to the parts list.

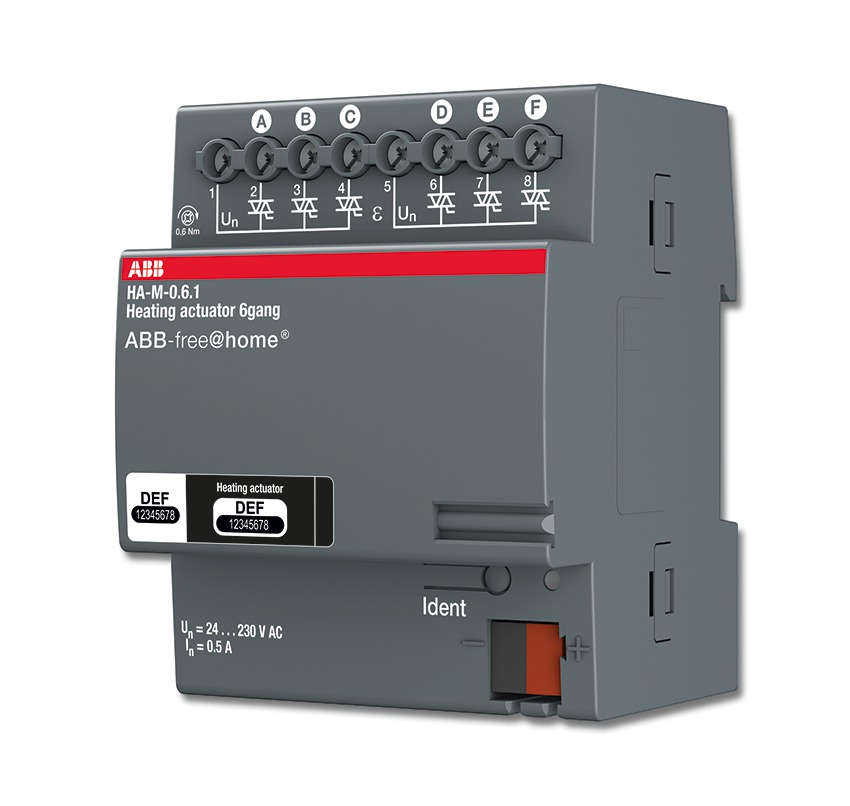

      Heating actuator, 6gang for ABB-free@home® 6254/0.6
      2CKA006220A0025

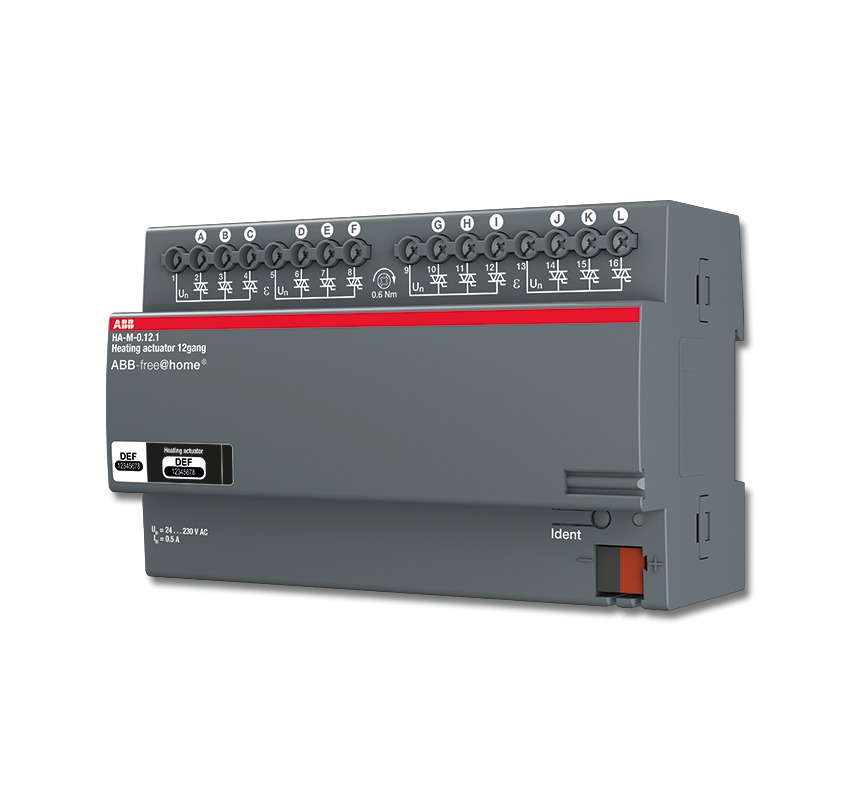

      Heating actuator, 12gang for ABB-free@home® 6254/0.12
      2CKA006220A0026
