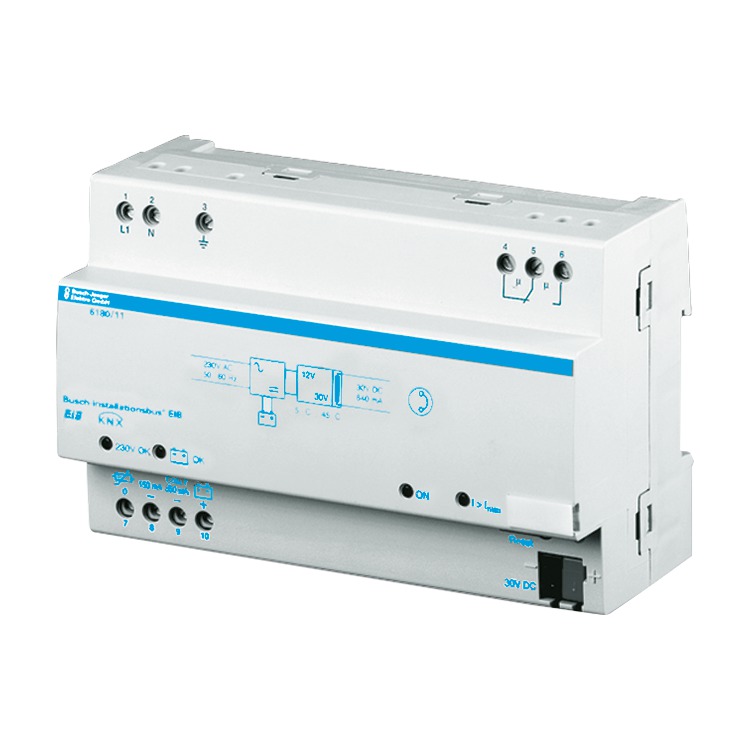

Uninterruptible KNX power supply 640 mA
SELV

SU/S 30.640.1
Take over in my parts list / tender specifications

Functions at a glance

  • With integrated choke.
  • For the connection of up to 2 batteries or a battery module for backup of the ABB i-bus® KNX in the case of power failure.
  • Control element: Reset switch
  • Display elements: Status indication via LEDs
  • Rated voltage: 230 V~, +10 % / -15 %
  • Secondary: 30 V, +2 V / -2 V
  • Rated frequency: 50 Hz / 60 Hz
  • Power dissipation: 6 W
  • Outputs: 1 short-circuit-proof
  • Rated current: 640 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
  • Module width: 8
  • Division units: 8
  • 1 MW ≙ 18 mm.
  • For software and description please check the current Online-Catalogue.

    Order details

    Article No.:6180/11
    Order No.:2CKA006180A0023
    EAN:4011395057926
    Customs tariff number:85043180
    Price group:44
    Price:472,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Technical manual
    Certificates
    Software
    Dimensions
    MDRC devices, measurements 1TE = 18 mm; 2TE = 36 mm; 4TE = 72 mm, 6TE = 108 mm; 8TE = 144 mm; 12TE = 216 mm

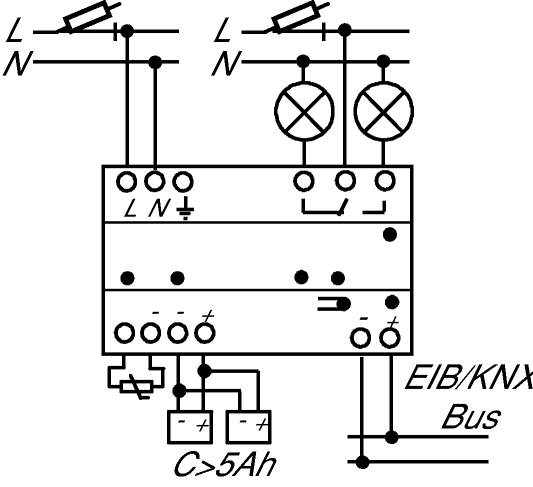

    Wiring diagram
