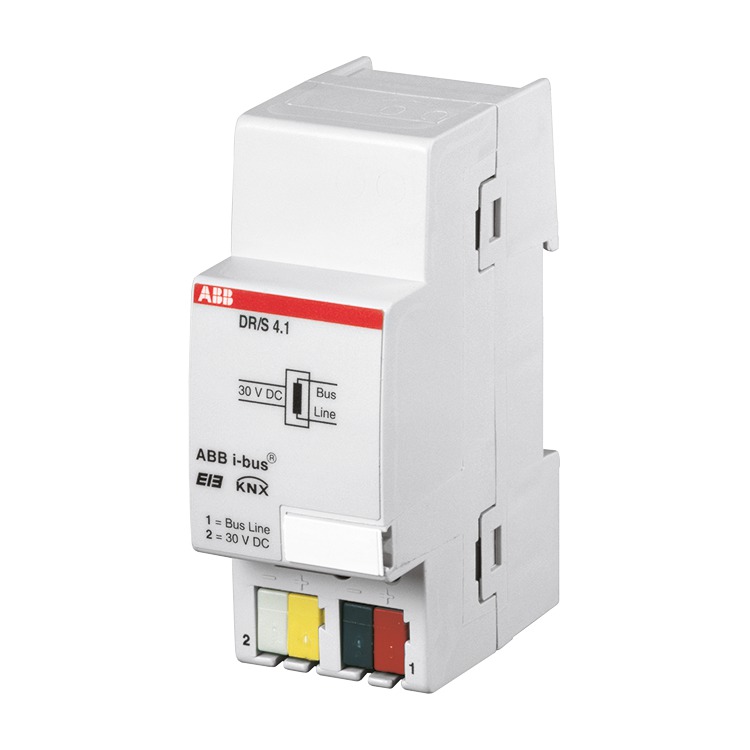

Functions at a glance

  • For voltage supply 6180-102 for connecting a second line.
  • Decoupling of voltage supply and bus line.
  • Control element: Automatic reset function
  • Display elements: Operating LED
  • Rated voltage: 30 V
  • Outputs: 1
  • Supply voltage: 29 V
  • Rated current: 500 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 36 mm x 64 mm
  • Module width: 2

    Order details

    Article No.:6181-101
    Order No.:2CKA006181A0011
    EAN:4011395058473
    Customs tariff number:85364900
    Price group:44
    Price:52,30 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    MDRC devices, measurements 1TE = 18 mm; 2TE = 36 mm; 4TE = 72 mm, 6TE = 108 mm; 8TE = 144 mm; 12TE = 216 mm
    Wiring diagram
    Installation of two KNX lines (A, B) with power supply (1,4), choke (2), and line coupler (3,5). The lines are connected via the main line (C); the current supply is via the choke (2).
