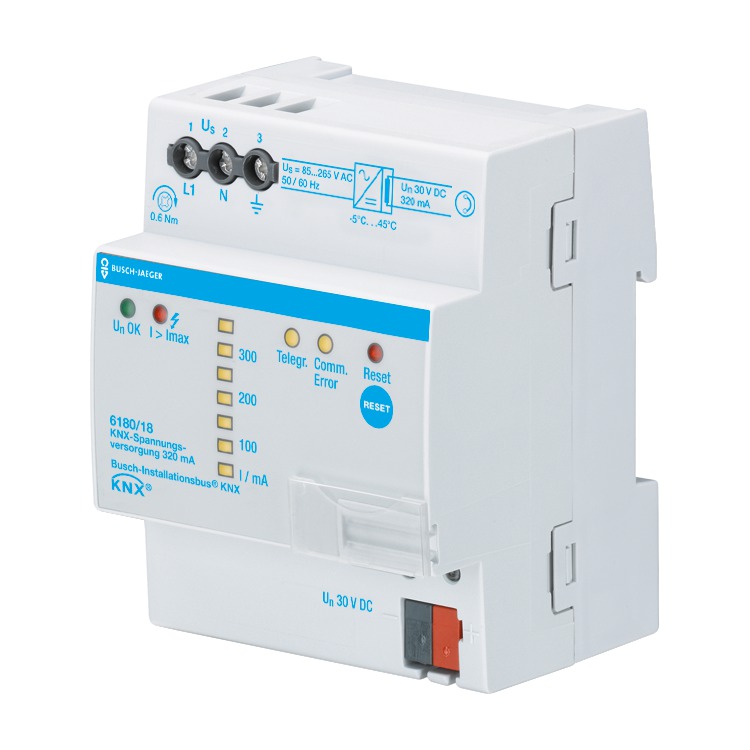

Functions at a glance

• The bus can be connected via enclosed terminal block.
• With diagnosis function for sending of bus current/voltage, operating data, overload, bus reset.
• Display of bus current used via 7 LEDs.
• Display LEDs: operation, overload, bus traffic/communication.
• For generating the system voltage for one bus line. With integrated choke.

• Control element: Reset switch
• Display elements: Status indication via LEDs

• Rated voltage: 230 V~, +10 % / -15 %
• Secondary: 30 V, +2 V / -2 V
• Rated frequency: 50 Hz / 60 Hz

• Outputs: 1 short-circuit-proof
• Rated current: 320 mA

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
• Module width: 4
• Division units: 4

• 1 MW ≙ 18 mm.
• For software and description please check the current Online-Catalogue.
