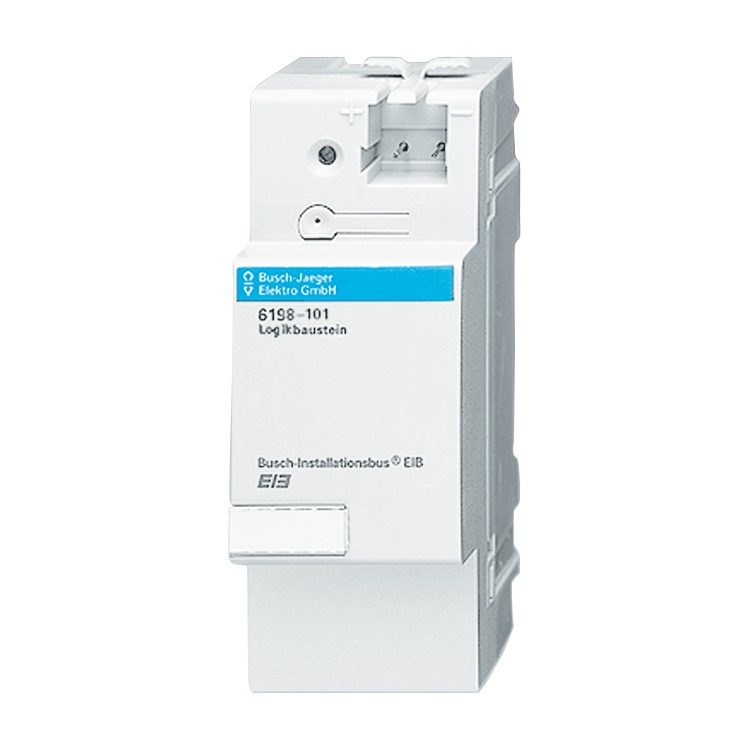

Logic unit

Take over in my parts list / tender specifications

Functions at a glance

  • for logic operation of addresses, delay of the output signal possible, light scene storage, filter function.
  • The bus can be connected via enclosed terminal block.
  • Rated voltage: 29 V-
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -20 °C - 55 °C
  • Transport temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 36 mm x 61 mm
  • Module width: 2
  • Division units: 2
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:6198-101
    Order No.:2CKA006198A0103
    EAN:4011395034026
    Customs tariff number:85389091
    Price group:44
    Price:146,00 EUR plus VAT
    Info sheet:Download PDF
