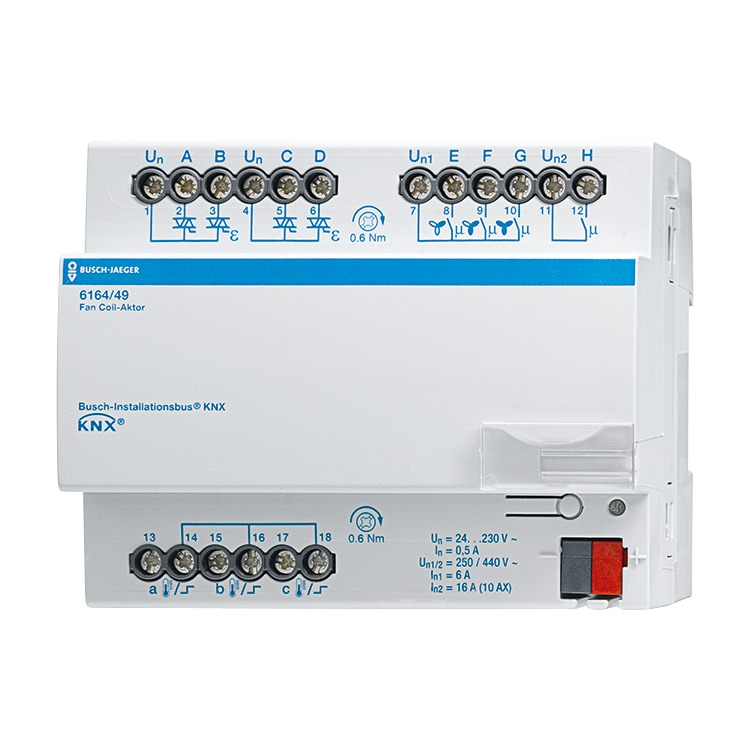

Functions at a glance

• Three contacts for switching a three-stage fan.
• Output H can be used to activate and electric heating system.
• Three inputs are available, e.g. for PT1000 message contacts, e.g. window and condensate water monitor.
• The scanning voltage is provided by the device.
• The control value is made available via the KNX bus.

• Rated voltage: 230 V~, +10 % / -15 %
• Rated frequency: 50 Hz / 60 Hz

• Outputs: 4 Normally open contact, potential free
• Rated current: 10 AX

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 90 mm x 108 mm x 64 mm
• Module width: 6
• Division units: 4

• For software and description please check the current Online-Catalogue.
• 1 MW ≙ 18 mm.
