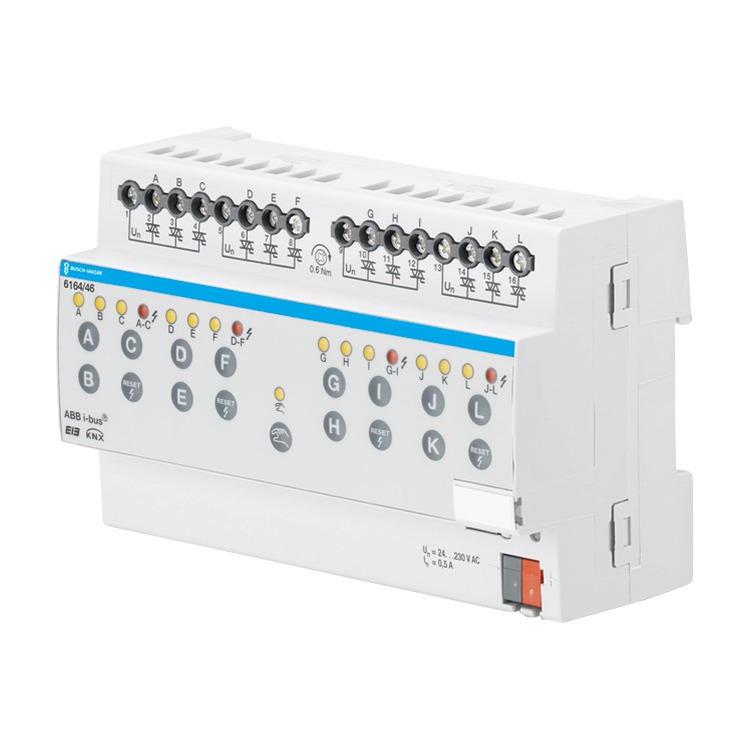

Valve drive actuator
12gang

Functions at a glance

  • For controlling thermoelectric positioners in heating and cooling systems with 24...230 V AC.
  • The outputs are short-circuit protected and overload-protected and the start-up can be controlled by manual operation.
  • Only one thermoelectric positioner permitted per channel
  • Outputs: 12 Semiconductor outputs, 24 V~ - 230 V~
  • Rated current: 160 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
  • Module width: 8
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:6164/46
    Order No.:2CKA006151A0238
    EAN:4011395137536
    Customs tariff number:85389091
    Price group:44
    Price:438,00 EUR plus VAT
    Info sheet:Download PDF
