My parts list/tender specifications

Actions:
Discontinuation type

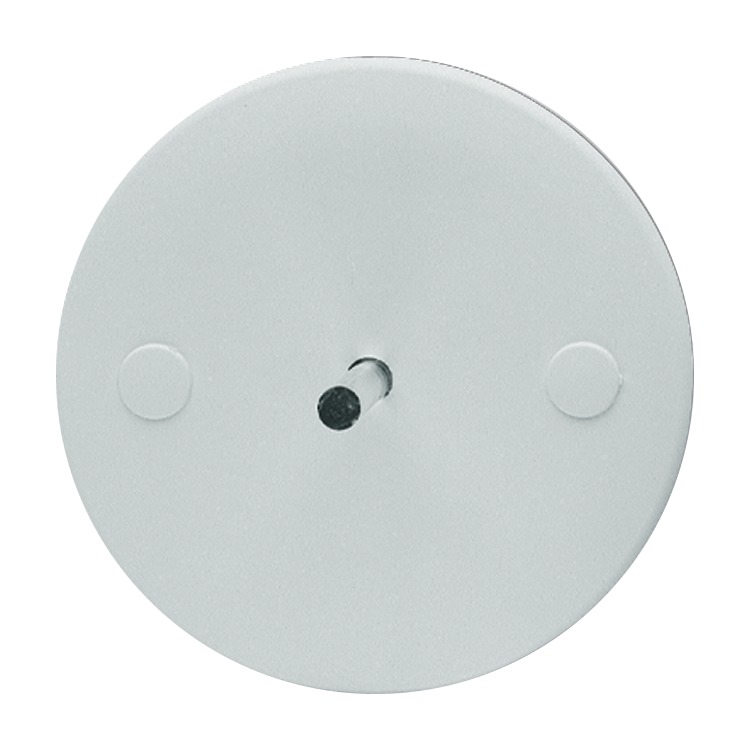

Light sensor

LF/U 2.1
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • The light sensor is used in conjunction with 6197/70, 6174/16-101, 6174/40, and 6197/43 for constant light control.
  • Connection is via terminal (included).
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 20 mm x 54 mm

    Order details

    Article No.:6197/71
    Order No.:2CKA006151A0209
    EAN:4011395113769
    Customs tariff number:85389091
    Price group:44
    Price:78,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Technical manual
    Certificates
    Software

    Related products

    Compatible with
    Page 1 of 2
    Item was added to the parts list.

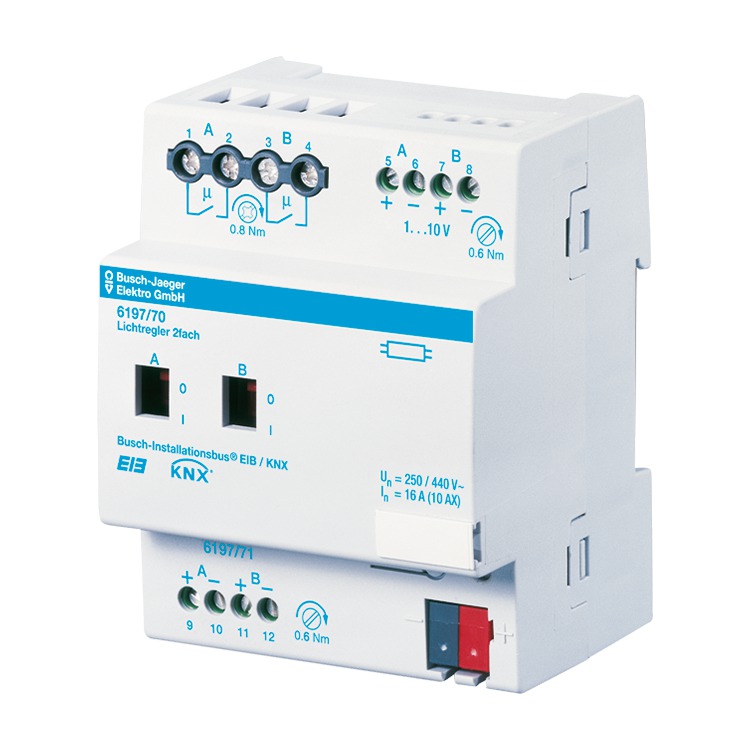

    Light regulator 2gang 6197/70
    2CKA006151A0208
