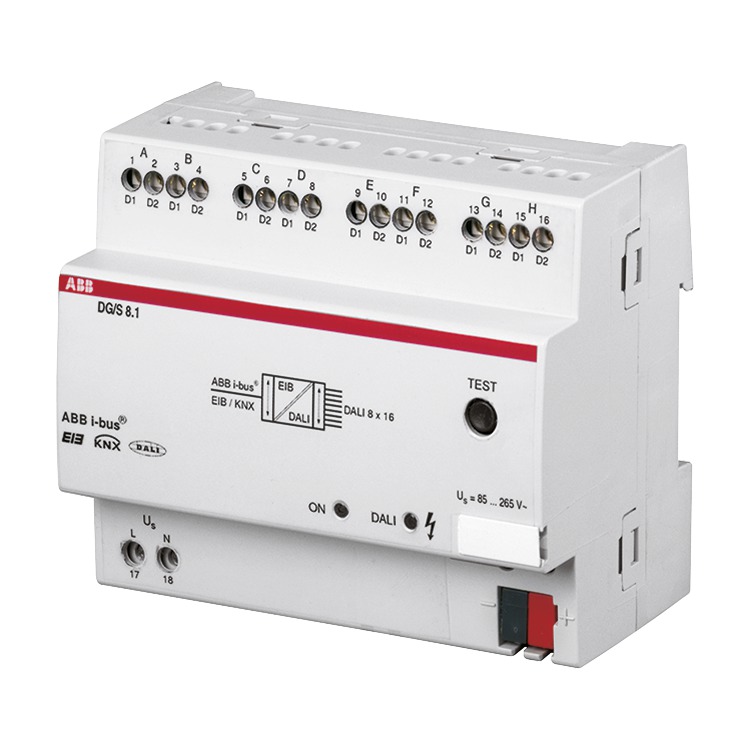

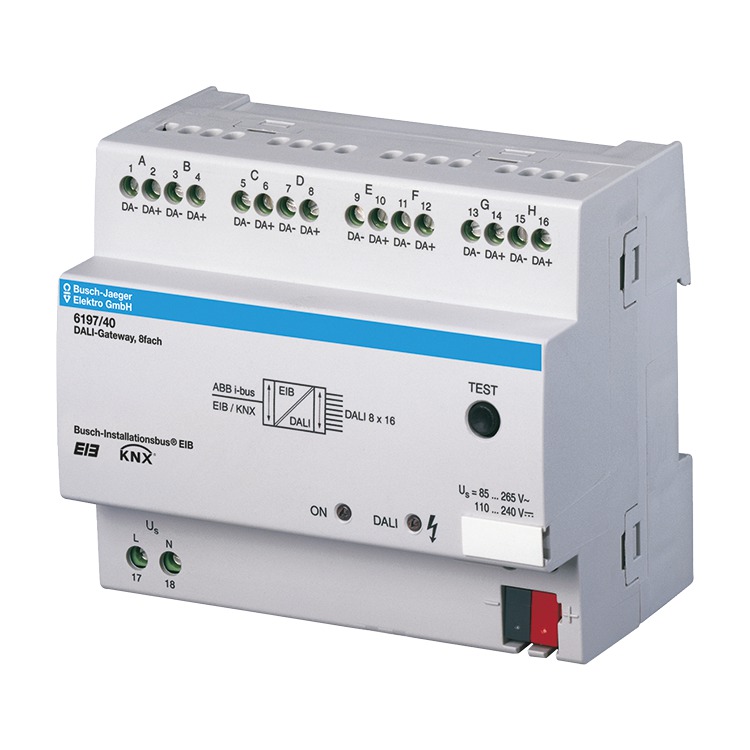

  • 8gang DALI gateway.
  • For the actuation of DALI-gears, e.g. electronic gears, via ABB i-bus® KNX.
  • Up 128 DALI devices can be connected with a maximum of 16 per channel.
  • Addressing or start-up of the DALI devices is not necessary.
  • Rated voltage: 230 V~, +10 % / -15 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 8 DALI channels, independent
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 108 mm x 64 mm
  • Module width: 6
  • Division units: 6
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:6197/40
    Order No.:2CKA006198A0108
    EAN:4011395075821
    Customs tariff number:85389091
    Price group:44
    Price:519,00 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    MDRC devices, measurements 1TE = 18 mm; 2TE = 36 mm; 4TE = 72 mm, 6TE = 108 mm; 8TE = 144 mm; 12TE = 216 mm
    Wiring diagram
    DALI-Gateway 8gang, 6197/40
