Functions at a glance

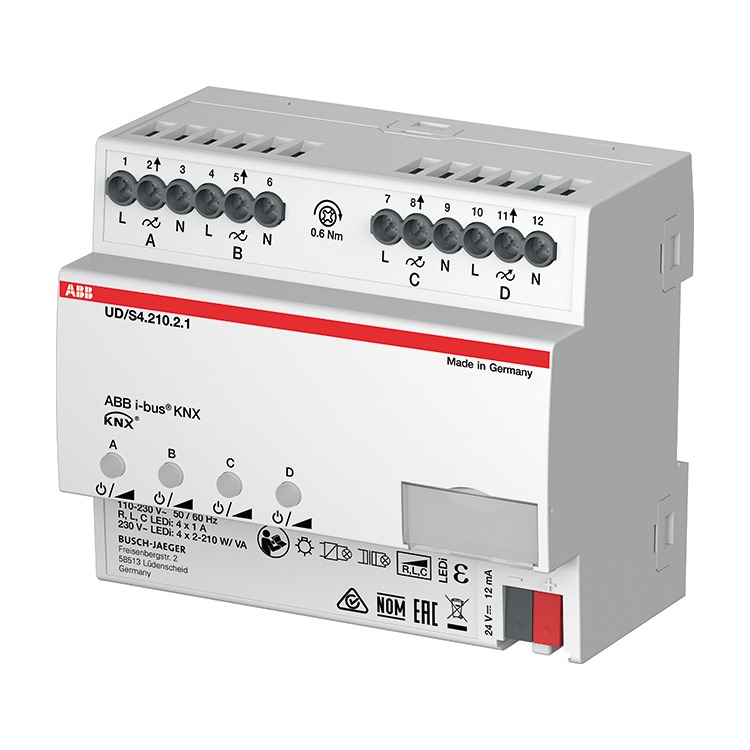

• Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi).
• Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps.
• Automatic load detection (can be deactivated).
• Separate N-connection per channel.
• Parallel connection of the outputs possible to increase the output power.
• Outputs can be connected in parallel in any configuration.
• Minimum load: 2 W.
• Manual operation on device also possible without bus voltage or in an unprogrammed status.
• Programming of the device also possible without applied 230V supply voltage.
• Extensive test and diagnosis functions for the i-Bus tool.
• Fast parameter setting in ETS using copyable channel templates.
• With integrated bus coupler.
• Nominal power at 230 V~ mains voltage:
• 230 V~ incandescent and halogen lamps: 4 x 210 W/VA to 1 x 600 W/VA.
• Dimmable 230 V~ LEDi: 4 x 210 W/VA to 1 x 600 W/VA in trailing edge control, 4 x 80 W/VA to 1 x 200 W/VA in leading edge control.
• Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA.
• Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 210 W/VA to 1 x 600 W/VA.
• Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 80 W/VA to 1 x 200 W/VA.

• Control element: One LED button per channel (including a colour status indication) for switching ON and OFF, as well as dimming up and down.

• Rated voltage: 110 V~230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz

• Outputs: 4

• Protection class (device): IP20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -20 °C - 70 °C

• Dimensions: (L x W x D): 90 mm x 108 mm x 64 mm
• Module width: 6
• Division units: 6

• For software and description please check the current Online-Catalogue.
• 1 MW ≙ 18 mm.
• Recommendation: Always use lamps of the same type and manufacturer.
