Discontinuation type

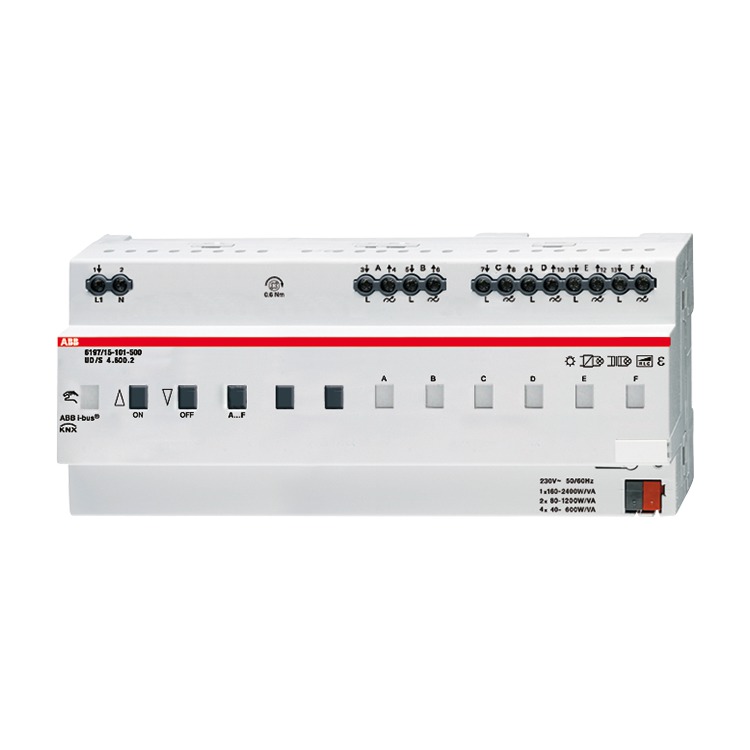

Universal dimming actuator, 4x 600 W/VA to 1x 2400 W/VA
1-4 fold

Functions at a glance

  • Multichannel universal dimming actuator for controlling incandescent lamps, 230 V incandescent halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps.
  • Optimized for dimming of Philips retrofit LEDs (LEDi).
  • Increasing the max. load via channel bridging possible.
  • The outputs can be switched parallel in any combination.
  • Outputs automatically recognise the connected load.
  • In addition, the operating mode can be selected manually.
  • Status indication of the channels via LED.
  • Direct manual operation with / without KNX voltage connected or in an unprogrammed status possible.
  • Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).

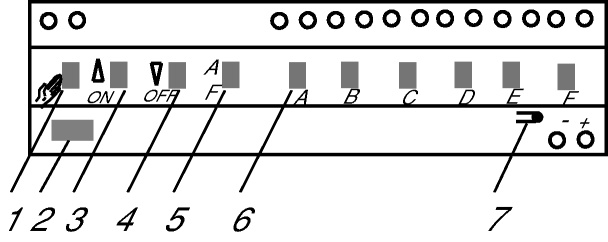

  • Control element: Manual operation of ON brighter / Off darker and channel selection.
  • Display elements: Outputs status indication via LED.
  • Rated voltage: 230 V~, +10 % / -10 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 4
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Dimensions: (L x W x D): 90 mm x 216 mm x 64 mm
  • Module width: 12
  • Division units: 12
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.
  • Additional Power-Tool software necessary.
  • For dimmable retrofit LED lamps (LEDi) on conventional or electronic transformers.
  • For dimmable retrofit LED lamps (LEDi).
  • A list of recommended Philips retrofit lamps LEDi is available at

Order details

Article No.:6197/15-101
Order No.:2CKA006197A0035
Customs tariff number:85389091
Price group:44
Price:872,00 EUR plus VAT
Info sheet:Download PDF

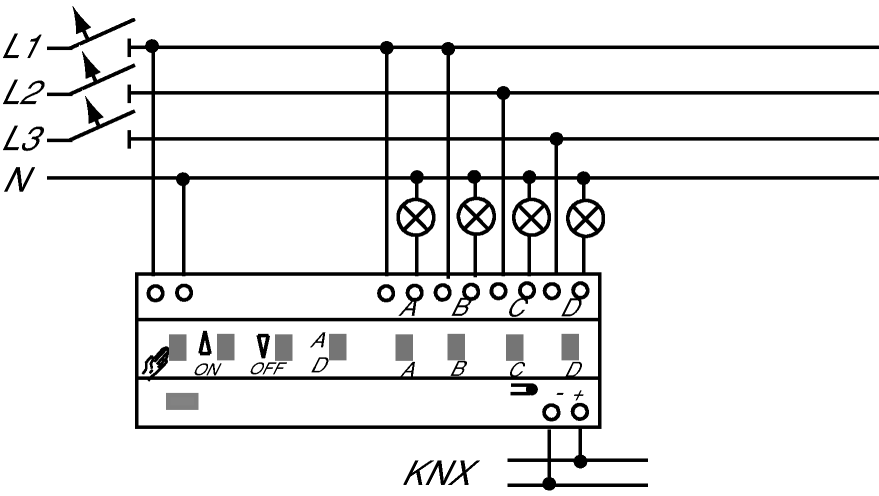

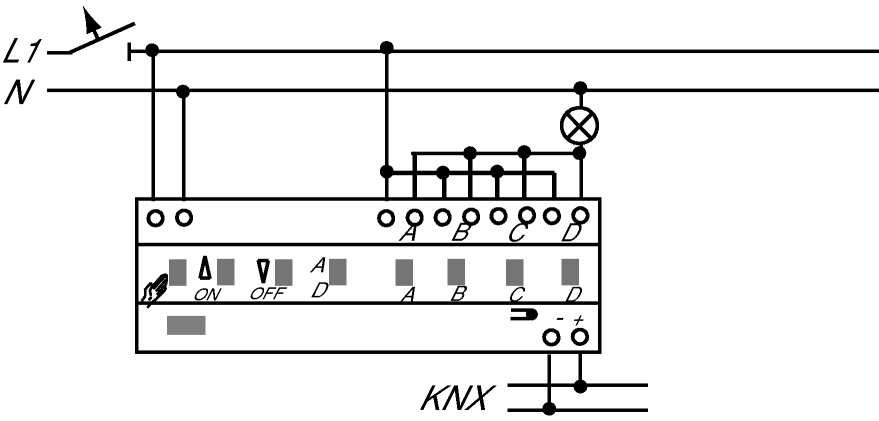

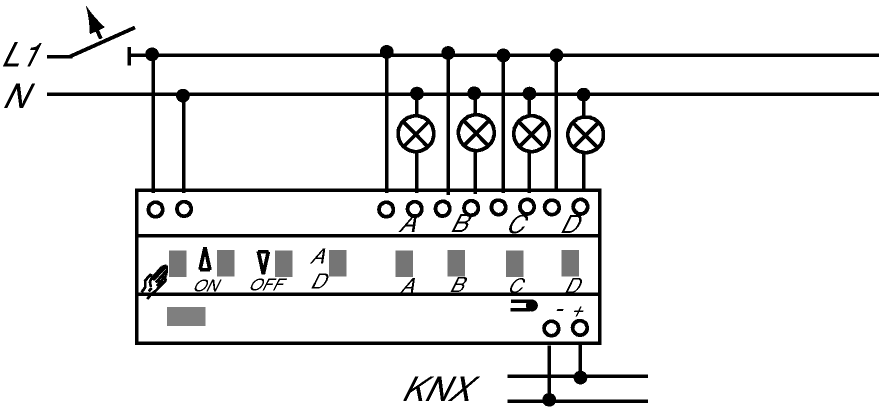

Wiring diagram
