Switch/dim actuator
8gang

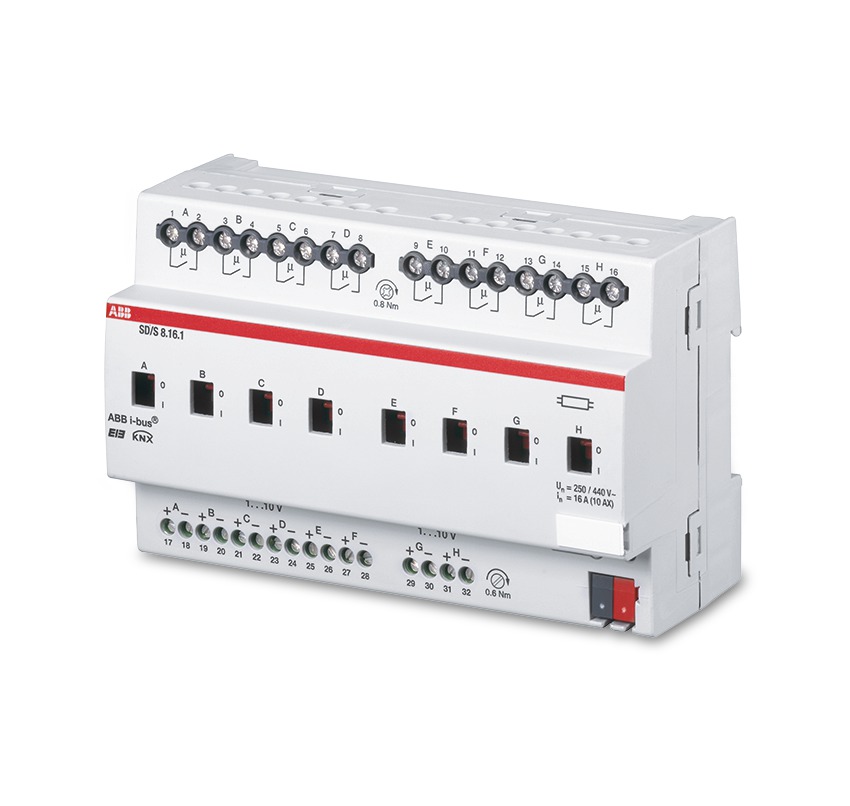

SD/S 8.16.1
Take over in my parts list / tender specifications

Functions at a glance

  • 8gang switch/dimmer actuator for dimming 8 electronic gear groups with 1 - 10 V interface
  • The bus can be connected via enclosed terminal block.
  • Control element: Manual operation possibility for ON/OFF via sliding switch
  • Display elements: Status display of the outputs via position of the sliding switches
  • Rated voltage: 230 V~, +10 % / -15 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 8 Normally open contact, potential free
  • suitable for: AC1
    • Rated current: 10 A, cos φ1
  • suitable for: AC3
    • Rated current: 8 A, cos φ0.65
  • Control/Signal outputs: 8 0-10 V (passive)
  • Rated current value: 100 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
  • Module width: 8
  • Division units: 8
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:6197/24
    Order No.:2CKA006151A0207
    EAN:4011395099346
    Customs tariff number:85176200
    Price group:44
    Price:720,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Technical manual
    Software
    Dimensions
    MDRC devices, measurements 1TE = 18 mm; 2TE = 36 mm; 4TE = 72 mm, 6TE = 108 mm; 8TE = 144 mm; 12TE = 216 mm
    Wiring diagram
