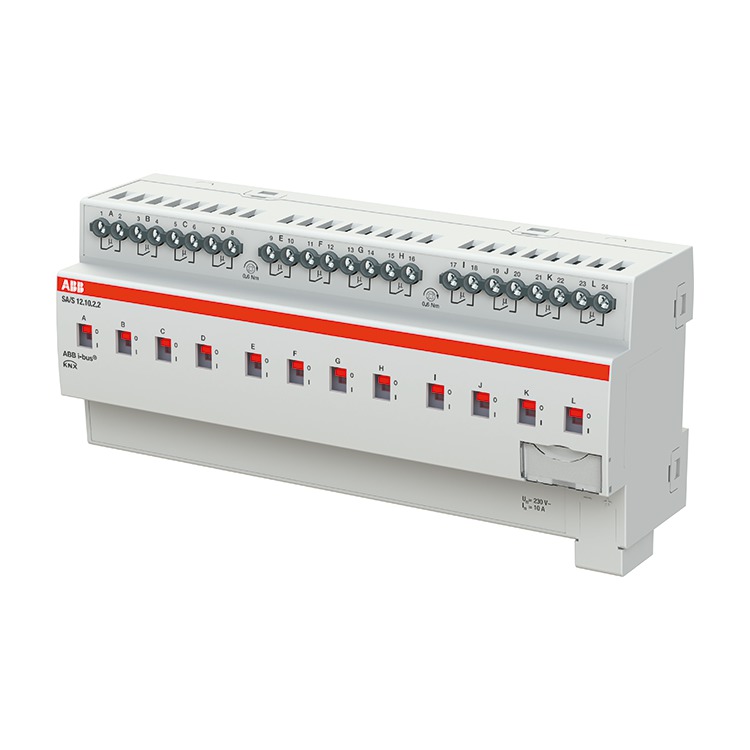

Switch actuator, 10 A
12gang

SA/S12.10.2.2
SA/S12.10.2.12
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • 12gang switch actuator.
  • Potential free contacts parameterisable as NC contact or NO contact
  • Output indication of the contacts
  • Also suitable for switching capacitive loads up to 140 μF.
  • The bus can be connected via enclosed terminal block.
  • Control element: Manual operation possibility for ON/OFF via sliding switch
  • Rated voltage: 230 V~, +10 % / -15 %
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 12 Normally open contact, potential free
  • suitable for: AC1
    • Rated current: 10 A, cos φ0.8
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 216 mm x 64 mm
  • Module width: 12
  • Division units: 12
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

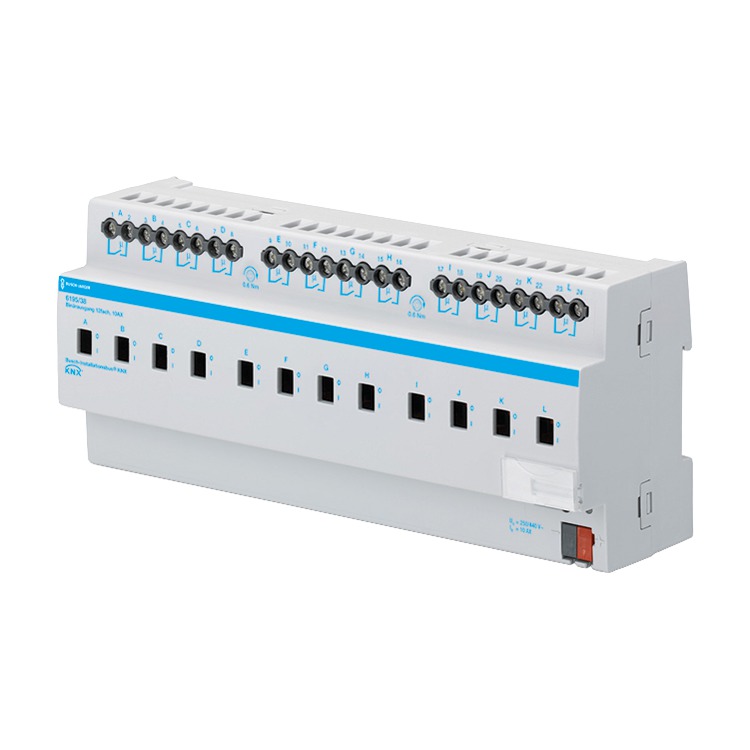

    Article No.:6195/38
    Order No.:2CKA006189A0098
    EAN:4011395159286
    Customs tariff number:85176200
    Price group:44
    Price:436,00 EUR plus VAT
    Info sheet:Download PDF
