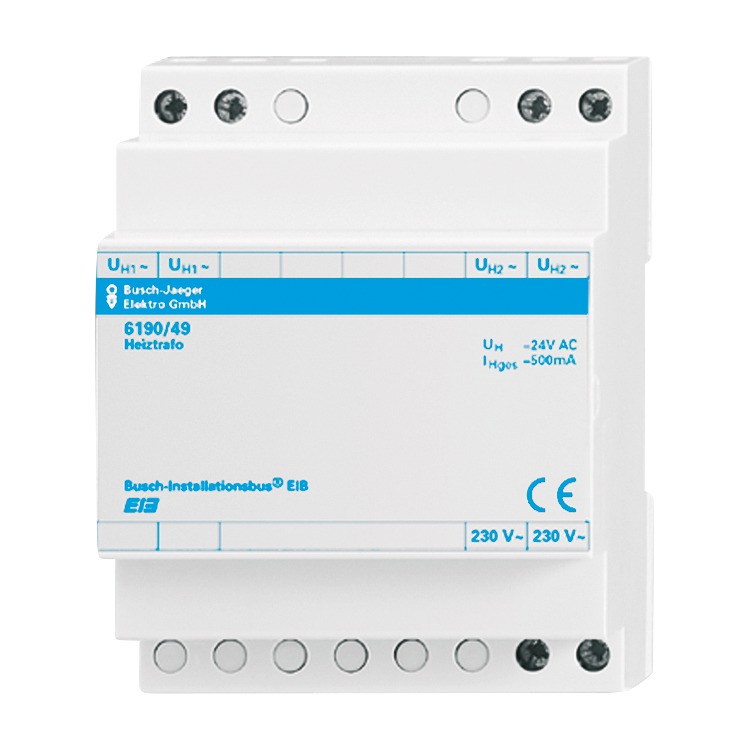

Filament transformer
2gang

Functions at a glance

  • For wind and/or rain sensor 6190/41and 6190/43.
  • Output: 24 V~, max. 1A SELV
  • Also suitable for supplying up to 5 thermoelectric valve drives 24 V, TSA/K 24.1.
  • For power supply to weather station WS/S 4.1.
  • Rated voltage: 230 V~, +10 % / -15 %
  • Secondary: 24 V~
  • Rated frequency: 50 Hz / 60 Hz
  • Outputs: 2 Secondary outputs, 24 V~
  • Rated current: 500 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 40 °C
  • Dimensions: (L x W x D): 90 mm x 70 mm x 58 mm
  • Module width: 4
  • 1 MW ≙ 18 mm.
  • The technical documentation is available only in German.

    Order details

    Article No.:6190/49-101
    Order No.:2CKA006190A0040
    EAN:4011395070543
    Customs tariff number:85043180
    Price group:44
    Price:114,00 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    MDRC devices, measurements 1TE = 18 mm; 2TE = 36 mm; 4TE = 72 mm, 6TE = 108 mm; 8TE = 144 mm; 12TE = 216 mm
    Wiring diagram

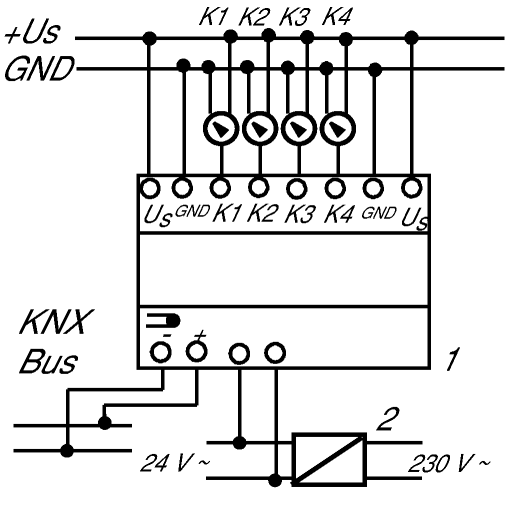

    Weather station WS/S 4.1 (1) with required filament transformer/voltage supply 6190/49-101 (2) and 4 connected sensors 0-10 V
