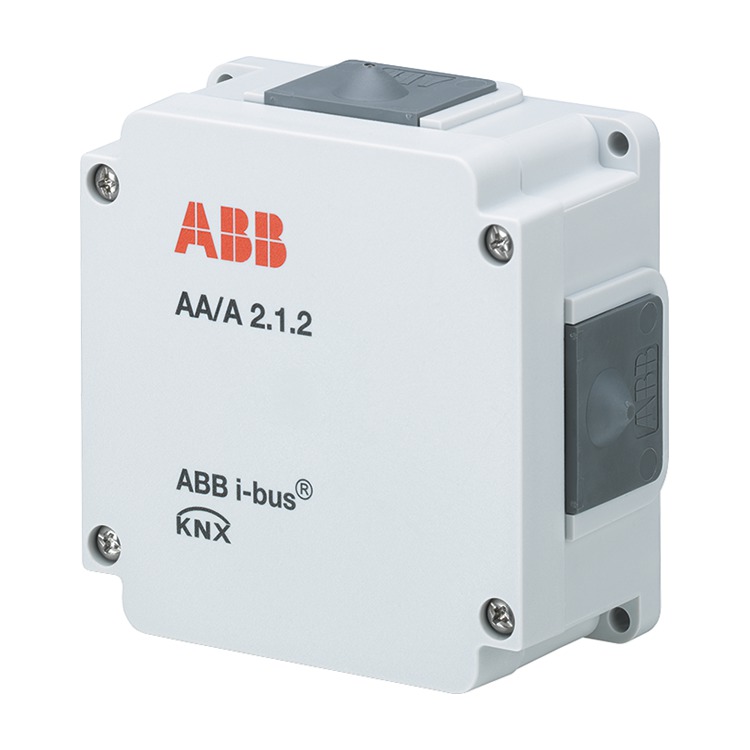

Analogue actuator
2gang

Take over in my parts list / tender specifications

Functions at a glance

  • 2gang analogue actuator in the housing for surface mounting.
  • The analogue actuator converts KNX telegrams into voltage or current signals.
  • Thes analogue output signals are used to influence control processes.
  • In dependence of information that is transmitted via the bus system, the function of heating, air-conditioning or ventilation devices can be adjusted, for example.
  • Outputs: 2
  • Protection class (device): IP 54
  • Temperature range (device): -20 °C - 70 °C
  • Storage temperature range: -25 °C - 70 °C
  • Transport temperature range: -25 °C - 70 °C
    • For software and description please check the current Online-Catalogue.
    • 1 MW ≙ 18 mm.

      Order details

      Article No.:AA/A 2.1.2
      Order No.:2CDG110203R0011
      EAN:4016779954075
      Customs tariff number:85371091
      Price group:44
      Price:265,00 EUR plus VAT
      Info sheet:Download PDF
