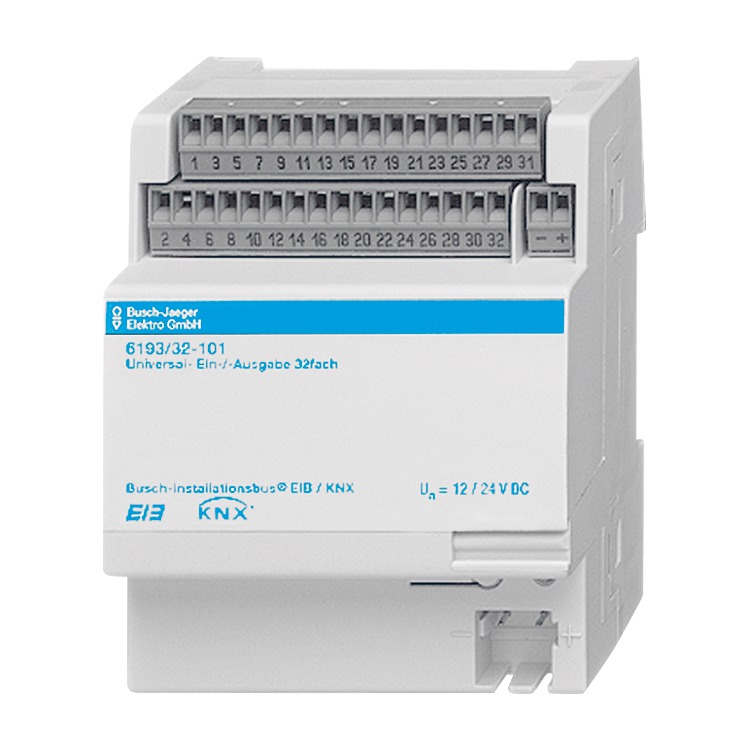

Universal input/output
32gang

Take over in my parts list / tender specifications

Functions at a glance

  • 32 inputs/outputs for connecting potential free low-voltage push buttons or signal lamps (max. 80 mA each.).
  • Not suitable for controlling relay.
  • Connecting cables max. 10 m.
  • The channels are freely parameterisable as output or input with the help of ETS.
  • External stabilised voltage supply (12-24 V DC, e.g. 6191/11-101 or 6193/33-101) is required.
  • The bus can be connected via enclosed terminal block.
  • Control/Signal outputs: 32 electronic output, potential-bound
  • Rated current value: 80 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
  • Module width: 4
  • Division units: 4
  • For software and description please check the current Online-Catalogue.
  • 1 MW ≙ 18 mm.

    Order details

    Article No.:6193/32-101
    Order No.:2CKA006189A0091
    EAN:4011395095270
    Customs tariff number:85389091
    Price group:44
    Price:527,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Technical manual
    Certificates
    Software
    Dimensions
    Wiring diagram
    Universal I/O concentrator 32gang UK/S 32.2
