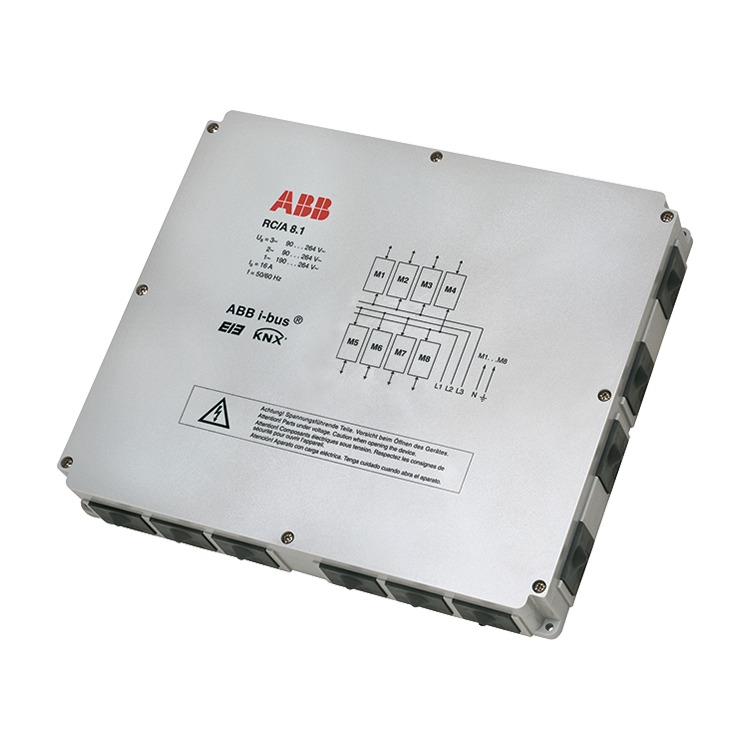

Room controller
8gang

6174/10-101
Take over in my parts list / tender specifications

Functions at a glance

  • Basic device for configuring up to 8 modules, e.g. blind actuator module, switching actuator module, dimming actuator module etc.
  • 24 V DC, for direct supply of 24V DC modules
  • Rated voltage: 230 V, +10 % / -10 %
  • Rated frequency: 50 Hz
  • Protection class (device): IP 54
  • Temperature range (device): -20 °C - 45 °C
  • Storage temperature range: -20 °C - 55 °C
  • Transport temperature range: -20 °C - 70 °C
  • Dimensions: (L x W x D): 270 mm x 316 mm x 50 mm
  • For software and description please check the current Online-Catalogue.

    Order details

    Article No.:RC/A8.2
    Order No.:2CDG110106R0011
    EAN:4016779681261
    Customs tariff number:85371091
    Price group:44
    Price:438,00 EUR plus VAT
    Info sheet:Download PDF
