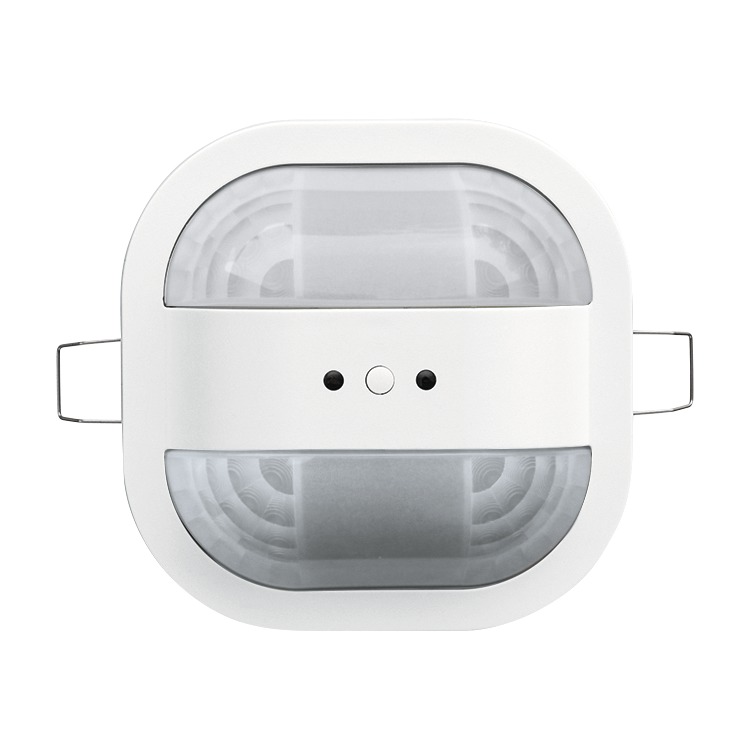

Functions at a glance

• Detection range (for mounting height 6 m and 12 m): circular.
• Walking persons Ø: max. 18 m and 24 m.
• Visible height 23 mm.
• With 2 channels.
• Targeted for connection and disconnection of lights bands depending on the room brightness.
• Use of the device as a movement detector.
• Detectors application with 2 power off stages.
• Detectors application with integrated monitoring function.
• Constant light switch with up to two independent channels.
• Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area.
• With integrated KNX bus coupler.
• The programming button can be activated with the IR transmitter 6010-25 (-500).
• Suitable for false ceilings with a board thickness from 9 to 25 mm.
• Hole size: Ø 68 mm.
• Suitable for surface mounting installation.
• Cannot be installed in British Standard or VDE flushmounted box.
• Recommendation: HaloX^® 100 from Kaiser (article no. 1281-00) with corresponding cover (1281-01 or 1281-61 for exposed concrete) or IBTronic H120-68 from Spelsberg (article no. 97600501).

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C
• Brightness limit value: 1 Lux

• Dimensions: (L x W x D): 91 mm x 91 mm x 45 mm
• Mounting depth: 22 mm
• Mounting height: 4 m - 12 m

• For software and description please check the current Online-Catalogue.
