Functions at a glance

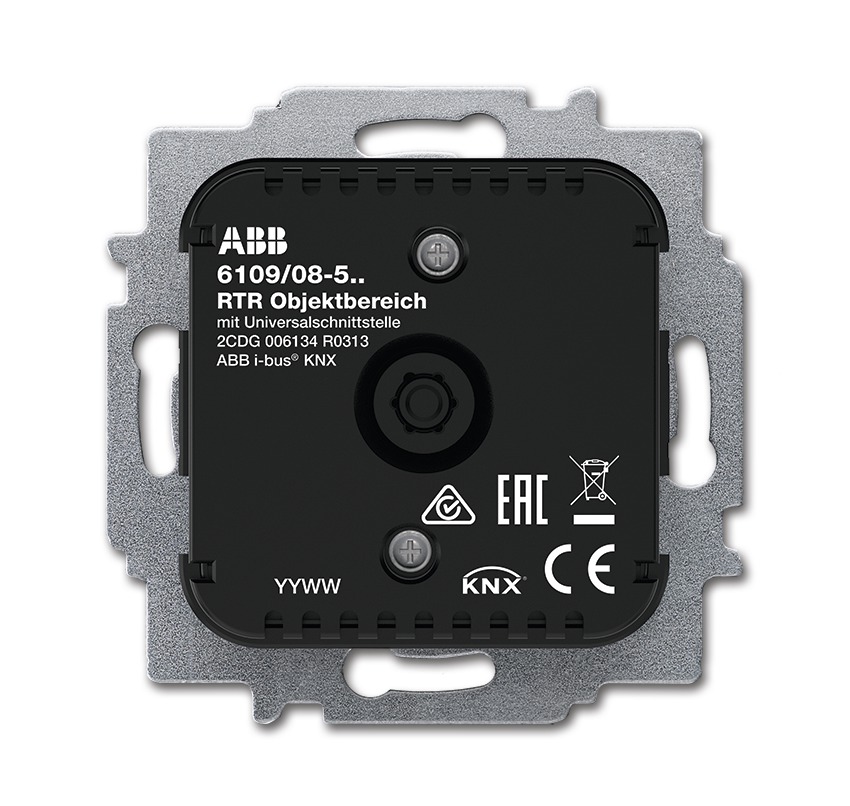

• Room temperature controller without >Local operation< incl. base for cooling element cover plate.
• With universal input with: - max. of 5 binary inputs - 4 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V - 2 binary inputs and 1 analogue input for activating sensors with external power supply 1-10 V/0-10 V and an external temperature sensor PT1000 / 6226T/ DP4-T-1.
• Can only be used with a cover plate 2114-xxx or 6541-xxx, with the exception of 6541-20. -21.-260 and -266.
• With integrated temperature sensor.
• With base-load operation.
• The bus can be connected via enclosed terminal block.
• Class of temperature controller 1
• Contribution to space heating energy efficiency 1,0%.

• Rated voltage: 24 V

• Rated current: 5 mA

• Control/Signal outputs: 1 0-10 V (passive)

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• For software and description please check the current Online-Catalogue.
• From ETS 4: commissioning via native ETS application
