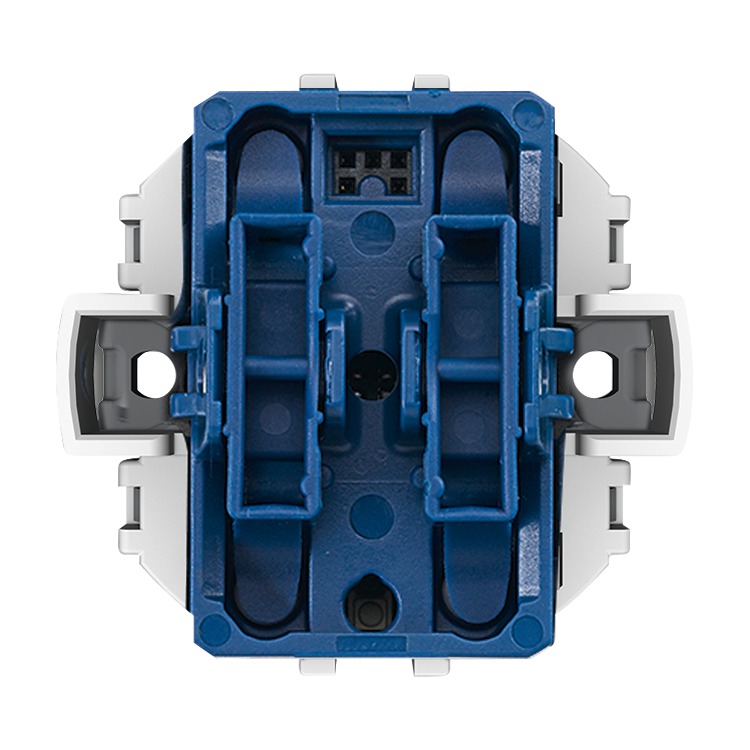

Push-button coupler 2/4gang
with integrated bus coupler

Functions at a glance

  • For contacting conventional 2gang rocker switches.
  • With middle position.
  • For inserting in the ocean surface-mounted housing.
  • Enclosed mounting plate for the following ranges: Busch-Duro 2000® SI/SI Linear, Reflex SI/SI Linear, future® linear, alpha, solo®, Busch-axcent®, carat® and pure stainless steel.
  • The bus can be connected via enclosed terminal block.
  • Rated voltage: 24 V, +5 V / -5 V
  • Protection class (device): IP 20
  • Temperature range (device): -25 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 53 mm x 45 mm x 28 mm
  • For software and description please check the current Online-Catalogue.
  • From ETS 4: commissioning via native ETS application

    Order details

    Article No.:6108/07-AP
    Order No.:2CKA006133A0226
    Customs tariff number:85365080
    Price group:43
    Price:91,00 EUR plus VAT
    Info sheet:Download PDF
