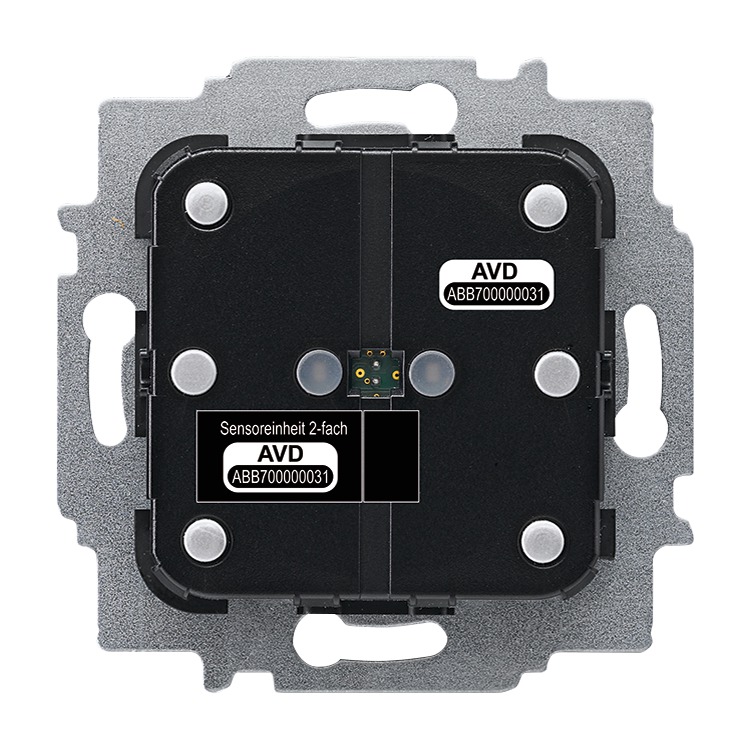

Push-button coupler 2/4gang
with integrated bus coupler
with integrated bus coupler
Functions at a glance
- For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx.
- With integrated temperature sensor.
- Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
- With middle position.
- The bus can be connected via enclosed terminal block.
- Control element: Switch contacts top/bottom
- Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
- Rated voltage: 24 V-, +5 V / -5 V
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Storage temperature range: -25 °C - 55 °C
- Transport temperature range: -25 °C - 70 °C
- Dimensions: (L x W x D): 71 mm x 71 mm x 23 mm
- For software and description please check the current Online-Catalogue.
- From ETS 4: commissioning via native ETS application
Order details
| Article No.: | 6108/07 |
| Order No.: | 2CKA006133A0222 |
| EAN: | 4011395210932 |
| Customs tariff number: | 85365080 |
| Price group: | 43 |
| Price: | 90,00 EUR plus VAT |
| Info sheet: | Download PDF |
