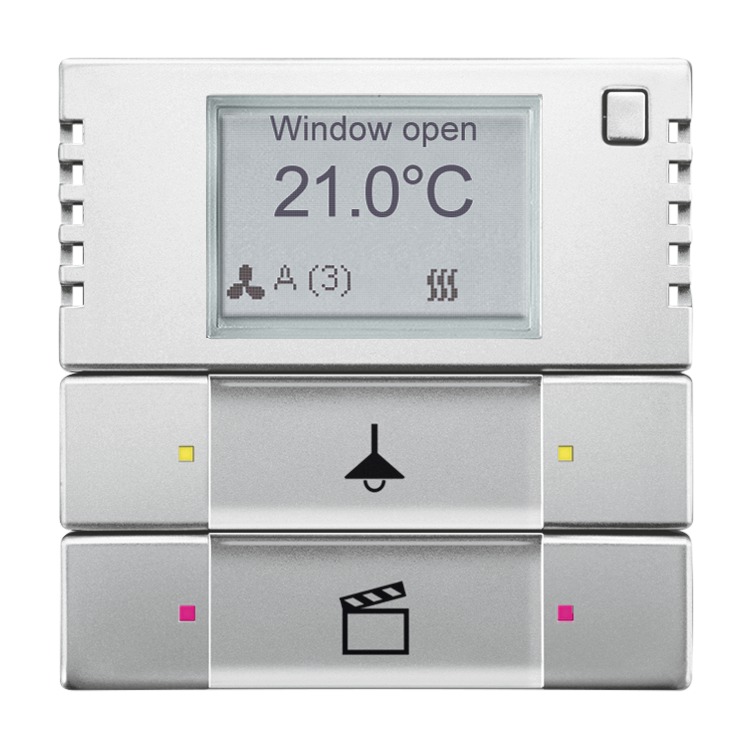

Control element, 2/
4gang, with RTC
Functions at a glance
- With labelling field.
- For ABB i-bus® KNX bus coupler 6120/12-101, 6120/13.
- Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
- Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).
- Master/slave configuration.
- With base-load operation.
- The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems.
- The fan stage can be switched manually or in automatic mode.
- Transparent labelling sheet with standard symbols included in delivery.
- Incl. 5 logic channels (logic gates, gates, delay and staircase lighting)
- Class of temperature controller 1
- Contribution to space heating energy efficiency 1,0%.
- Control element: Switch contacts left/right, also for selecting setpoint and mode of operation.
- Display elements: LCD showing operation mode and temperature.
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Storage temperature range: -25 °C - 55 °C
- Transport temperature range: -25 °C - 70 °C
- Dimensions: (L x W x D): 63 mm x 63 mm
- For software and description please check the current Online-Catalogue.
- ETS programming only with ETS 3.0f or higher
- For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
- Additional Power-Tool software necessary.
- Surface painted.
|Customs tariff number:||90329000|
|Price:||191,00 EUR plus VAT|
|Info sheet:||Download PDF|
