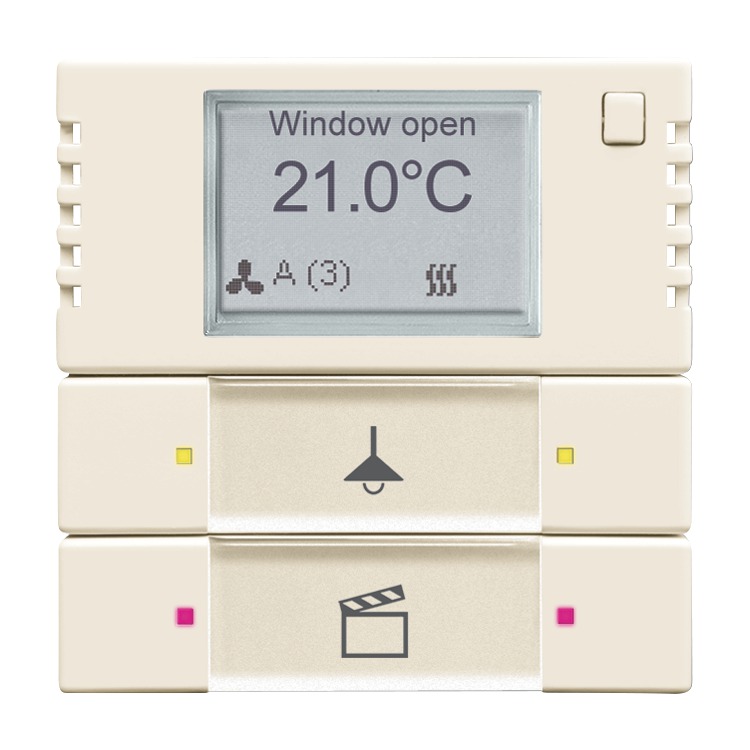

Control element, 2/4gang, with RTC
multi-function/colour concept

Functions at a glance

  • With labelling field.

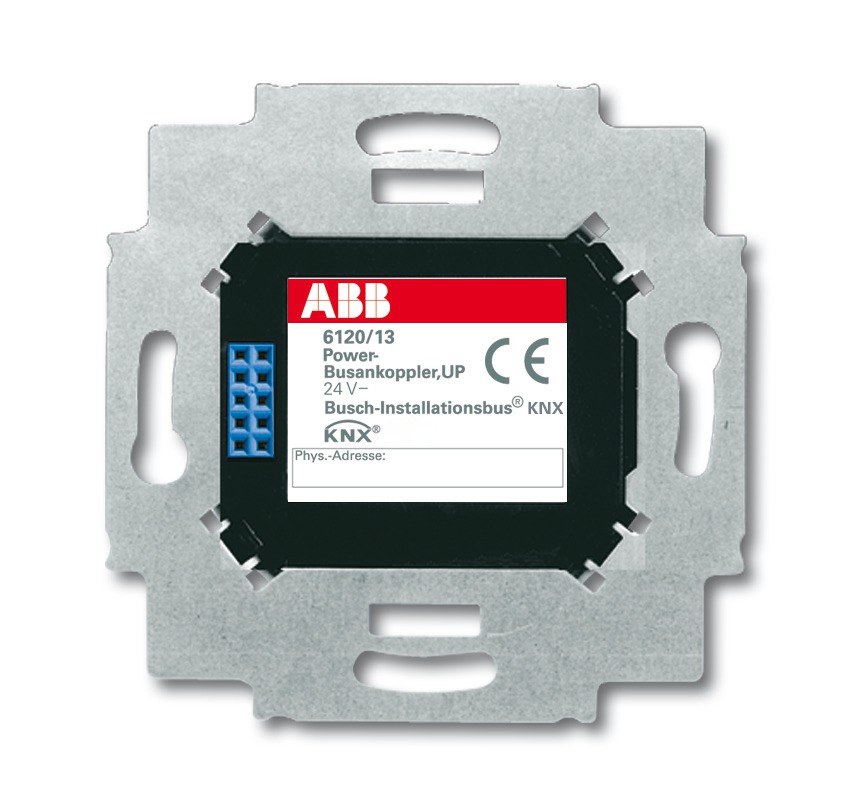

  • For ABB i-bus® KNX bus coupler 6120/12-101, 6120/13.
  • Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
  • Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).
  • Master/slave configuration.
  • With base-load operation.
  • The controller is a constant room temperature controller for ventilator convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems.
  • The fan stage can be switched manually or in automatic mode.
  • Transparent labelling sheet with standard symbols included in delivery.
  • Incl. 5 logic channels (logic gates, gates, delay and staircase lighting)
  • Class of temperature controller 1
  • Contribution to space heating energy efficiency 1,0%.
  • Control element: Switch contacts left/right, also for selecting setpoint and mode of operation.
  • Display elements: LCD showing operation mode and temperature.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C

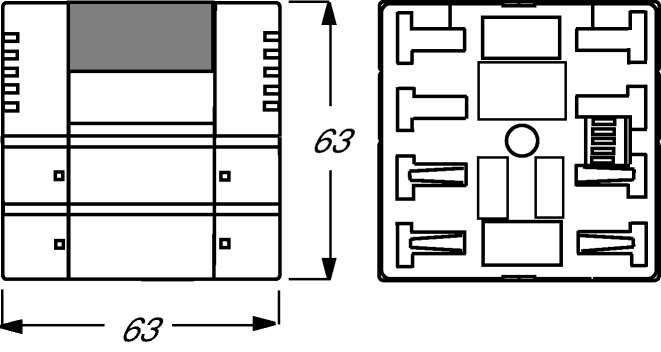

  • Dimensions: (L x W x D): 63 mm x 63 mm
  • For software and description please check the current Online-Catalogue.
  • ETS programming only with ETS 3.0f or higher
  • For compatible lettering software, visit
  • Additional Power-Tool software necessary.
  • RAL colour number: Ähnlich 1013

Order details

Article No.:6128/28-82
Order No.:2CKA006134A0322
Customs tariff number:90329000
Price group:42
Price:183,00 EUR plus VAT
Info sheet:Download PDF
Wiring diagram
