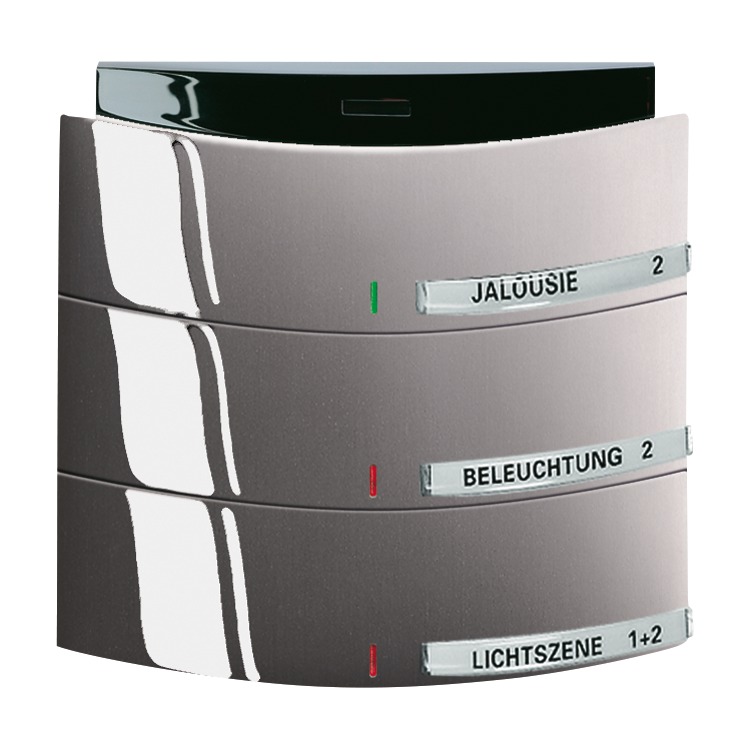

Functions at a glance

• With integrated KNX bus coupler.
• With labelling field.
• Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).

• Control element: rocker switch left/right
• Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 84 mm x 90 mm

• As required, you can find the programmable functions in the current application description, which you can download in the Support Centre on our Internet page.
• For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
