Functions at a glance

  • With integrated KNX bus coupler.
  • With labelling field.
  • Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function).
  • Control element: rocker switch left/right
  • Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 84 mm x 90 mm
  • As required, you can find the programmable functions in the current application description, which you can download in the Support Centre on our Internet page.
  • For compatible lettering software, visit

    Order details

    Article No.:6320/30-24G
    Order No.:2CKA006320A0013
    Customs tariff number:85365080
    Price group:42
    Price:238,00 EUR plus VAT
    Info sheet:Download PDF

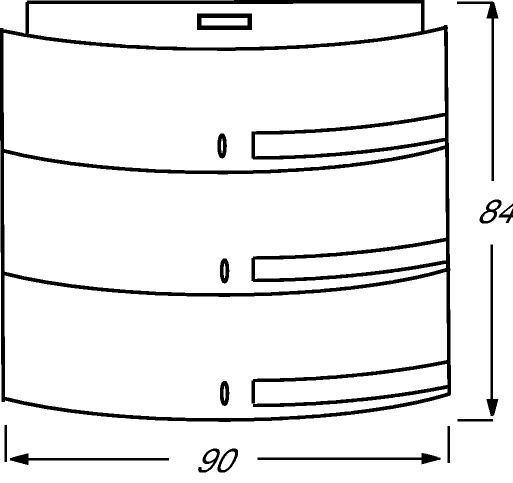

    Dimensional drawing, Busch-triton 6320/..-...
    Wiring diagram
    Busch-triton® connection 6320/..-...
