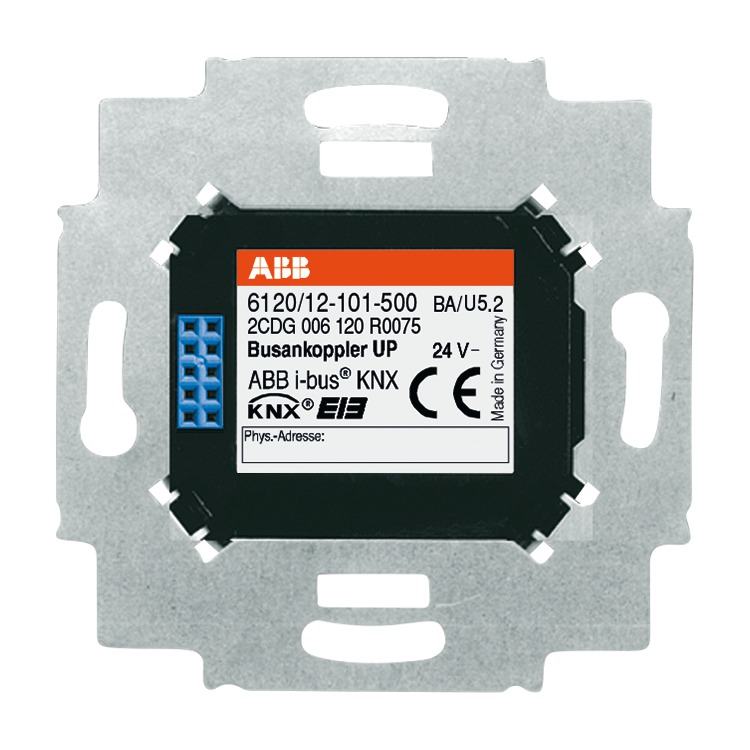

Flush-mounted bus coupler

Take over in my parts list / tender specifications

Functions at a glance

  • For Busch-priOn® 1gang support frame 6346/10-10x and control elements 6122/0x-xxx, 6124/0x-xxx, 6125/0x-xxx, 6126/0x-xxx, 6127/0x-xxx, 6128/0x-xxx, 6129/0x-xxx.
  • The bus can be connected via enclosed terminal block.
  • Rated voltage: 24 V
  • Rated current: 24 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 50 mm x 45 mm x 23 mm

    Order details

    Article No.:6120/12-101
    Order No.:2CKA006120A0074
    EAN:4011395135471
    Customs tariff number:85176200
    Price group:43
    Price:99,00 EUR plus VAT
    Info sheet:Download PDF

    Downloads

    Instruction manual
    Software

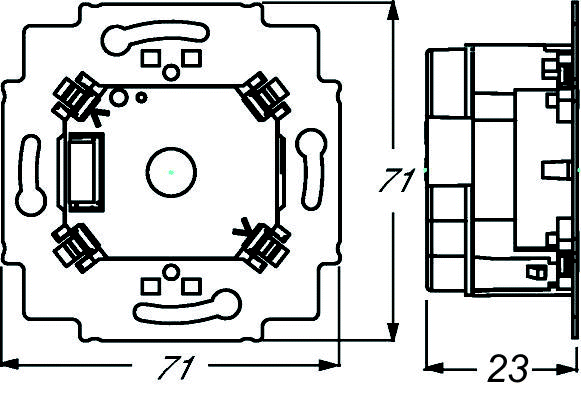

    Dimensions
    Flush-mounted bus coupler Busch-priOn® 6120/1x
    Wiring diagram
