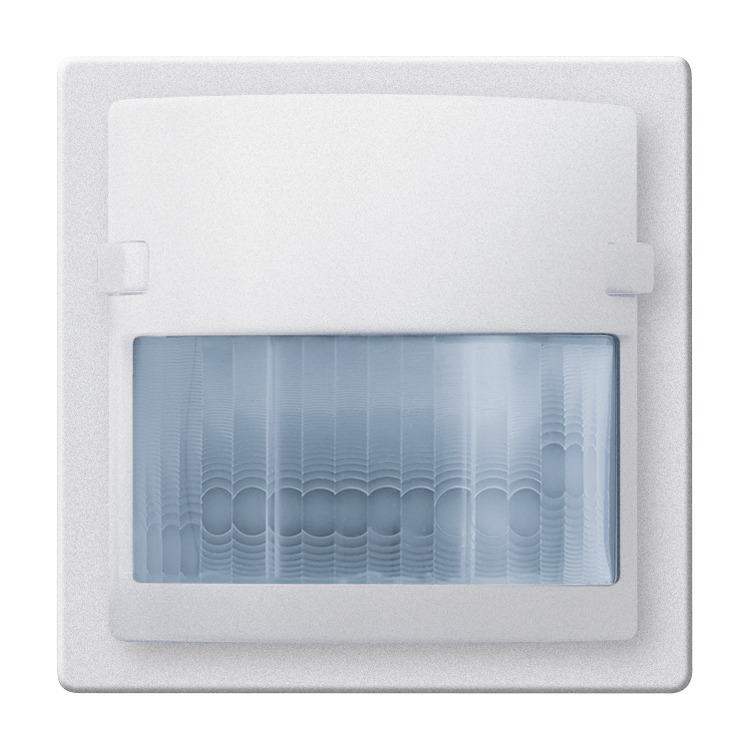

Busch-Watchdog 180 flush-mounted comfort sensor II
with multi-lens

studio white, matt
black matt
anthracite
ivory white
studio white
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For ABB i-bus® KNX 6120/12-101, 6120/13.
  • Movement detector with up to 4 channels.
  • Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
  • Control element: Sliding switch for manual operation ON/AUTOMATIC/OFF (lockable)
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Detection range: frontal: 15 m, lateral: 5 m
  • Detection range 2:
  • Brightness limit value: 5 Lux - Up to daytime operation
  • Detection angle: 180 °
  • Dimensions: (L x W x D): 63 mm x 63 mm x 28 mm
  • Position for installation: vertical
  • Mounting height: 0.8 m - 1.2 m, alternatively: 2.5 m
  • For software and description please check the current Online-Catalogue.
  • For compatible cover frames, see the following ranges: carat®, pure stainless steel, solo®, Busch-axcent® or future® linear.
  • Surface painted.

Order details

Article No.:6122/02-83
Order No.:2CKA006132A0261
EAN:4011395135181
Customs tariff number:85389099
Price group:42
Price:139,00 EUR plus VAT
Info sheet:Download PDF

Downloads

Instruction manual
Certificates
Software
Dimensions
Wiring diagram

Related products

Compatible with
Page 1 of 2
Item was added to the parts list.
Flush-mounted bus coupler 6120/12-101
2CKA006120A0074
Flush-mounted Power bus coupler Busch-priOn® 6120/13
2CKA006120A0071
