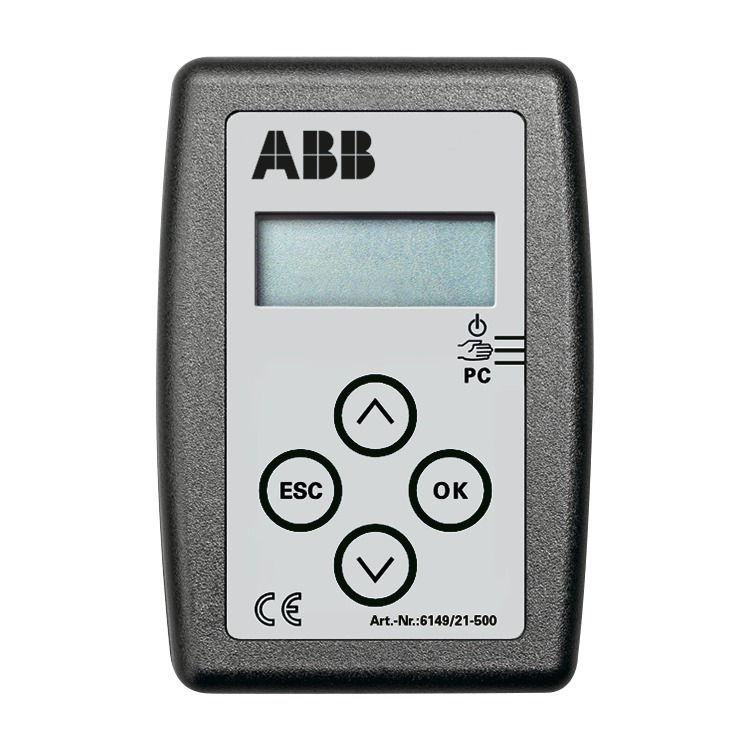

Commissioning interface/adapter

Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • For ABB i-bus ® KNX bus coupler 6120/12-101, 6120/13, 6197/12, 6197/13, 6197/14, 6197/15.
  • Commissioning via USB connection and SD card slot.
  • Data on SD card can be selected using the 4 push buttons using 4 push buttons shown on the 3-line backlit display.
  • With integrated battery for autonomous operation for up to 8h. Battery is charged by the PC via USB cable.
  • For interfacing a PC to the KNX. Allows direct access from PC to KNX bus (ETS 4.0 onwards)
  • Control element: 4 push buttons for operation
  • Display elements: Multiline backlit display
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
    • For software and description please check the current Online-Catalogue.

      Order details

      Article No.:6149/21
      Order No.:2CKA006133A0200
      EAN:4011395116623
      Customs tariff number:85389099
      Price group:42
      Price:301,00 EUR plus VAT
      Info sheet:Download PDF

      Downloads

      Instruction manual
      Software
