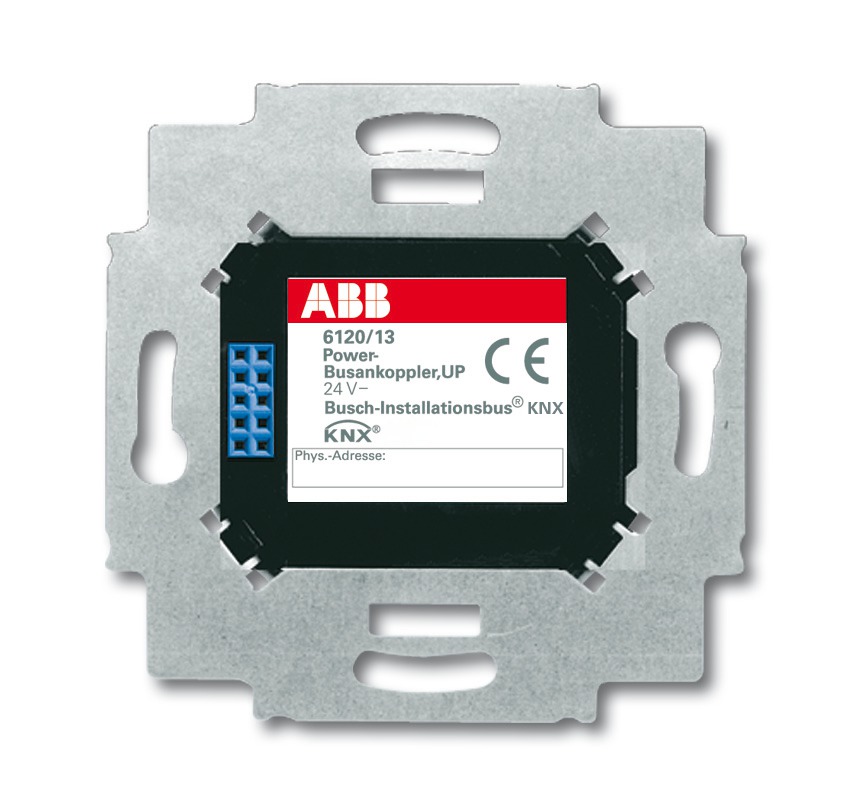

Flush-mounted Power bus coupler

Functions at a glance

  • For Busch-priOn® support frame, 1gang, 2gang, and 3gang.
  • Additional power supply must be connected via enclosed terminal block, e.g. yellow/white wires in bus connection.
  • KNX connection exclusively for bus communication. The bus can be connected via enclosed terminal block.
  • Rated voltage: 24 V-
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
    • As required, you can find the programmable functions in the current application description, which you can download in the Support Centre on our Internet page.

      Order details

      Article No.:6120/13
      Order No.:2CKA006120A0071
      Customs tariff number:85176200
      Price group:42
      Price:141,00 EUR plus VAT
      Info sheet:Download PDF
      Flush-mounted bus coupler Busch-priOn® 6120/1x
      Wiring diagram
