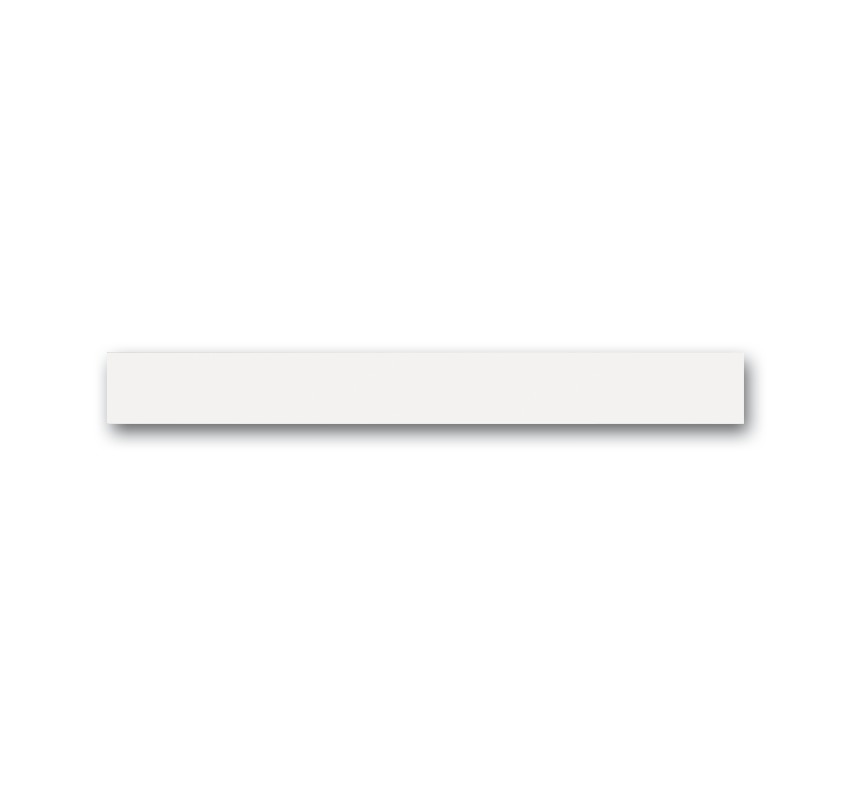

Bottom end strip with temperature sensor
Busch-priOn®

white glass
glass black
stainless steel
Take over in my parts list / tender specifications
Show related products on this page

Functions at a glance

  • Bottom end strip for installation on 1gang to 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101)
  • Provides the measured value for the 8.89 cm display (6344-xxx-101) or room temperature controllers 6124-xxx-10x, 6128-xxx-10x, 6108/0x and 6351/08-xxx via the integrated temperature sensor.
  • Not combinable with flush-mounted actuators (6354 U, 6355 U, 6356 U, and 6920/40).
  • Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 12.5 mm x 106.6 mm x 15.5 mm
  • For software and description please check the current Online-Catalogue.
  • ETS programming only with ETS 3.0f or higher
  • Additional Power-Tool software necessary.
  • RAL colour number: Ähnlich 9016

Order details

Article No.:6352-24G-101
Order No.:2CKA006310A0161
EAN:4011395131480
Customs tariff number:85389099
Price group:42
Price:28,60 EUR plus VAT
Info sheet:Download PDF

Downloads

Instruction manual
Certificates
Software
Dimensions
Bottom end strip, Busch-priOn® 6349-xxx-101, with temperature sensor 6352-xxx-101
