My parts list/tender specifications


Functions at a glance

  • Support frame for Busch-priOn® for the accommodation and termination of a rotary control element (6341-xxx-101), 1gang control element (6340-xxx-101), 3gang control element (6342-xxx-101), flush-mounted Watchdog (6345-xxx-101), standard top end strip (6348-xxx-101), standard bottom end strip (6349-xxx-101), end strip for IR and top proximity sensor (6350-xxx-101), end strip for display, RTC, IR, and proximity sensor (6351-xxx-101 or 6351/08-xxx-101), and bottom temperature sensor end strip (6352-xxx-101).
  • For contacting with power bus coupler 6120/13.
  • For contacting with power mains coupler 6920/13.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C

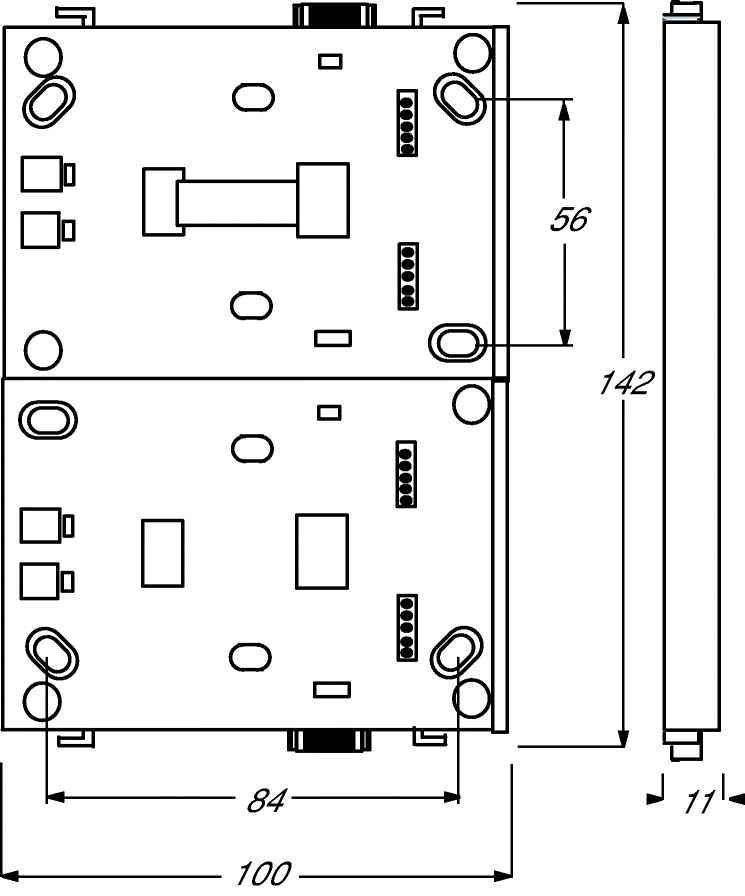

  • Dimensions: (L x W x D): 142 mm x 100 mm x 11 mm

    Order details

    Article No.:6346/11-101
    Order No.:2CKA006310A0136
    Customs tariff number:85389099
    Price group:42
    Price:62,90 EUR plus VAT
    Info sheet:Download PDF

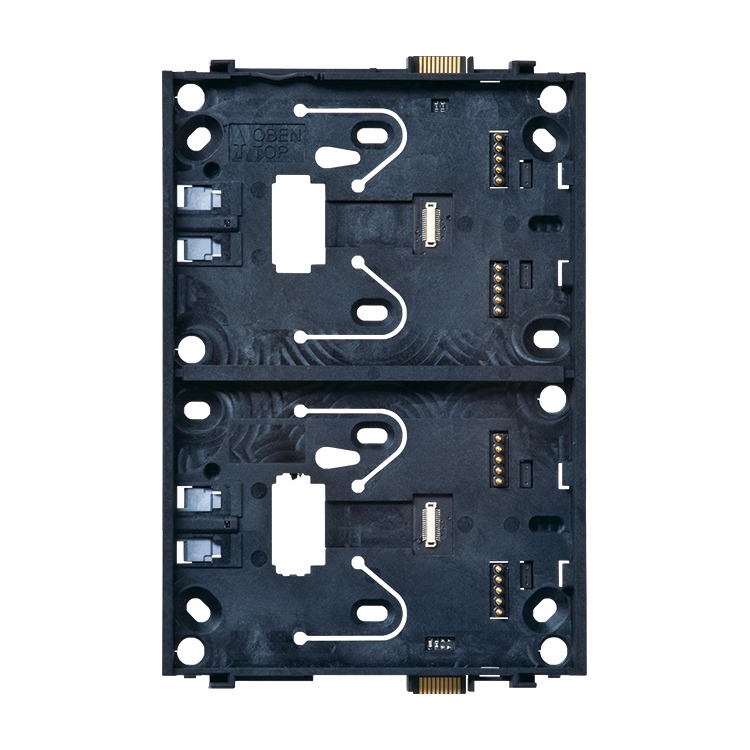

    Support frame for Busch-priOn® 6346/11-101
