Functions at a glance

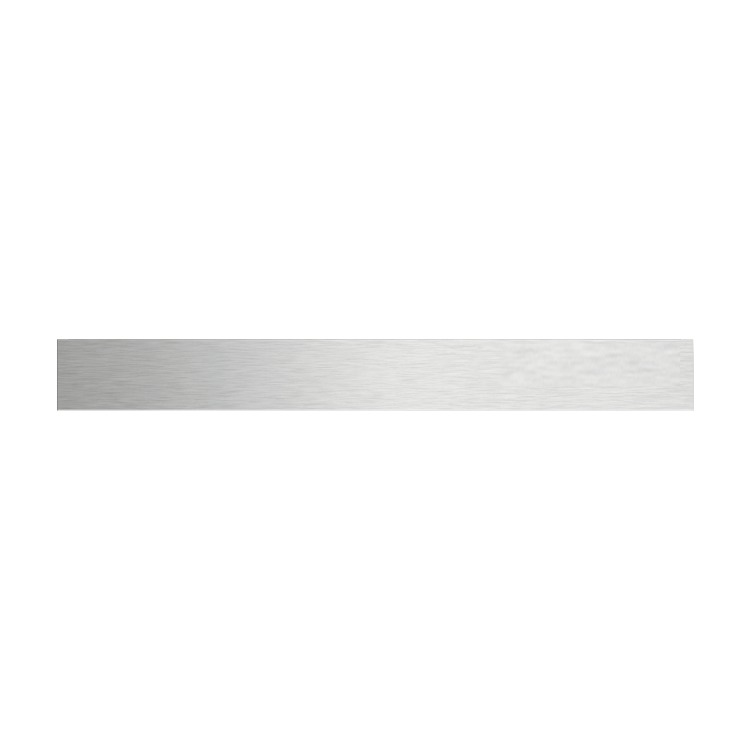

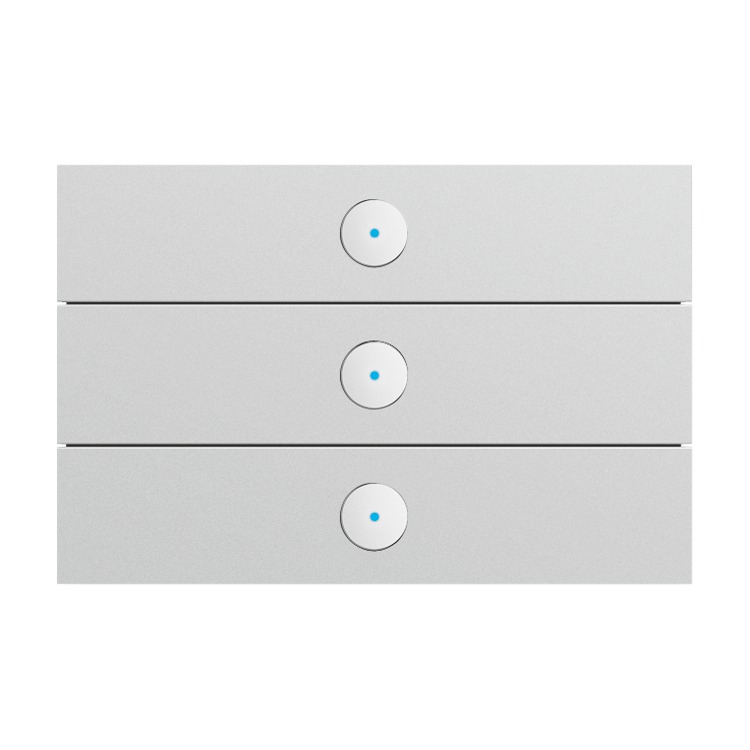

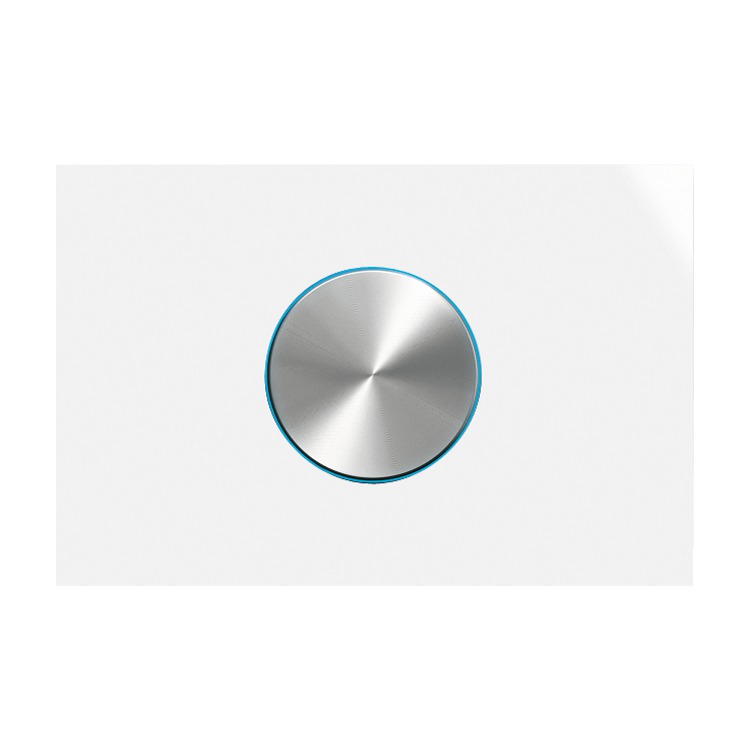

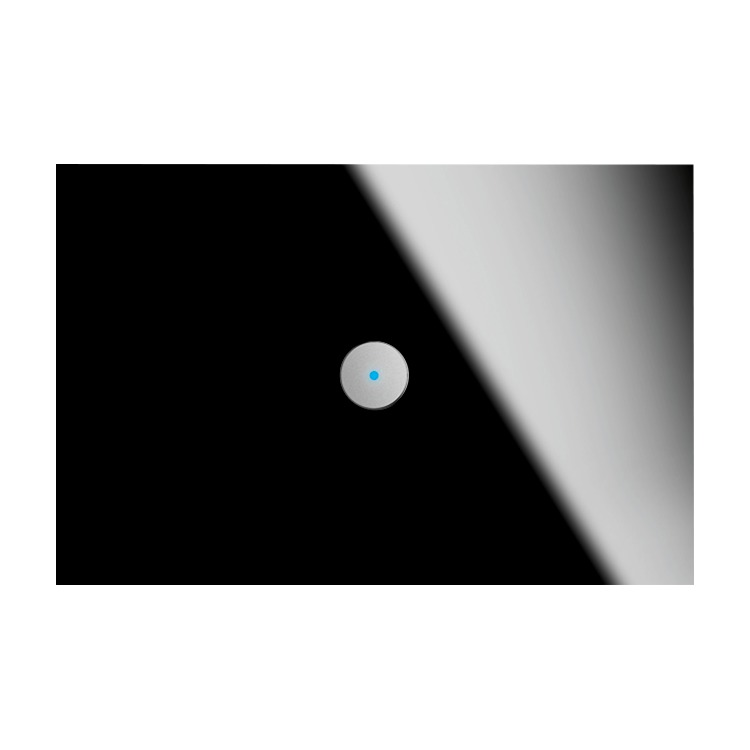

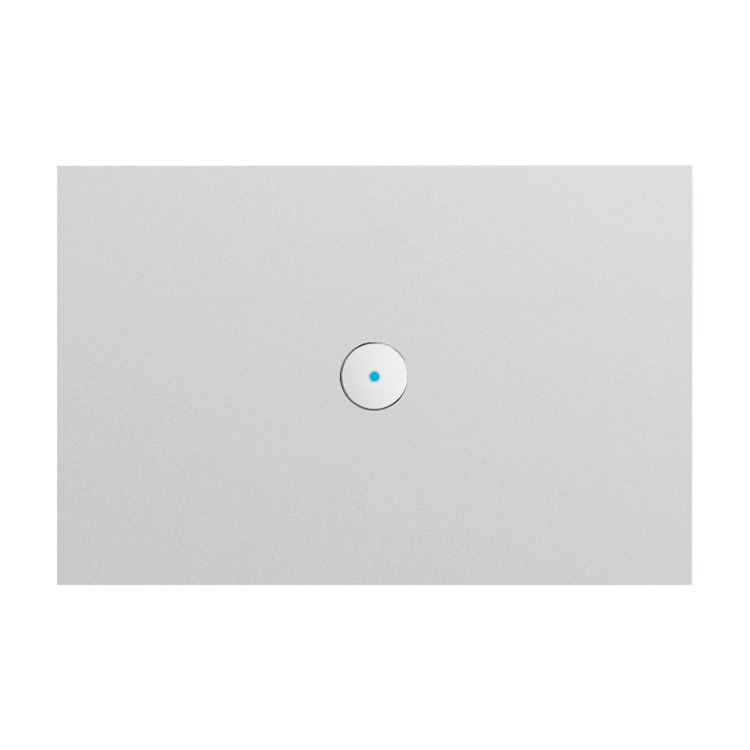

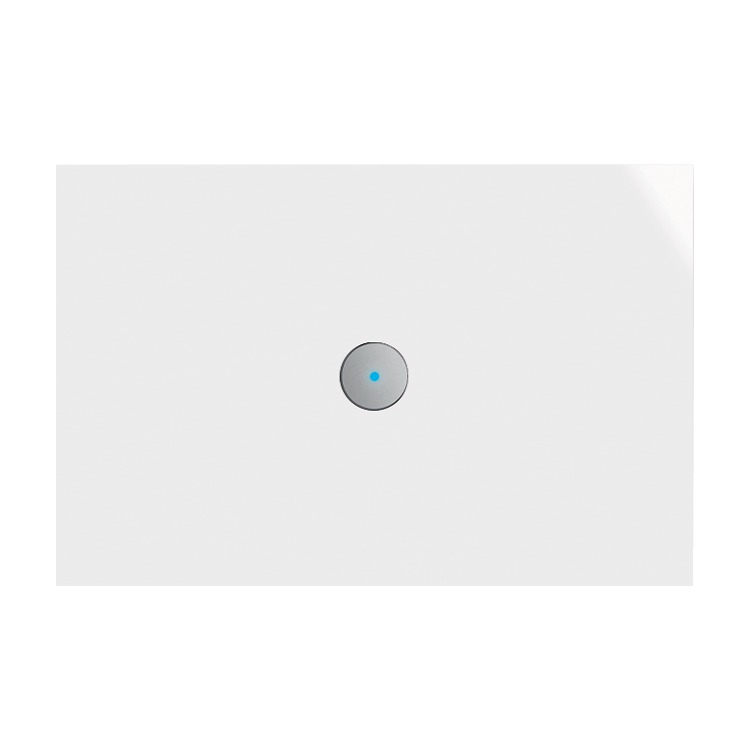

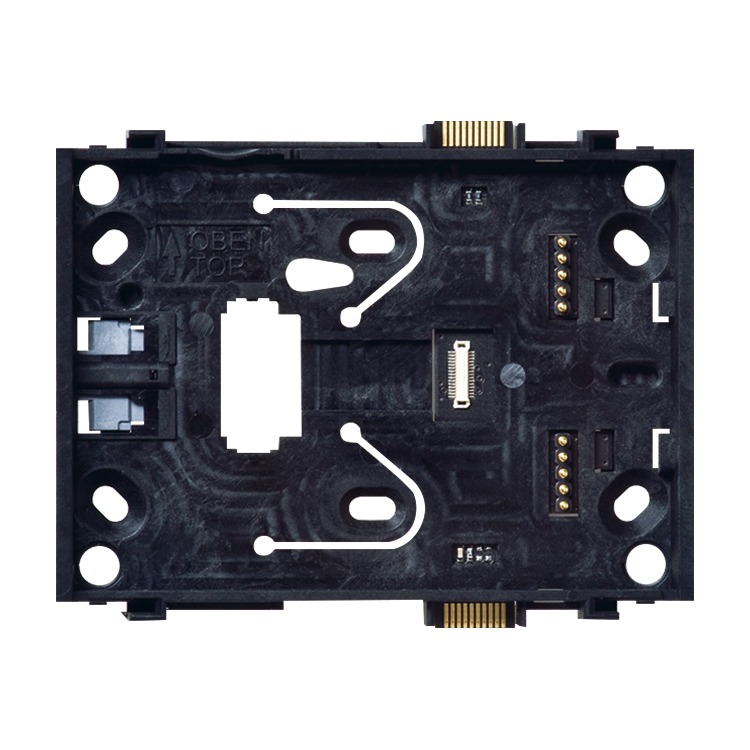

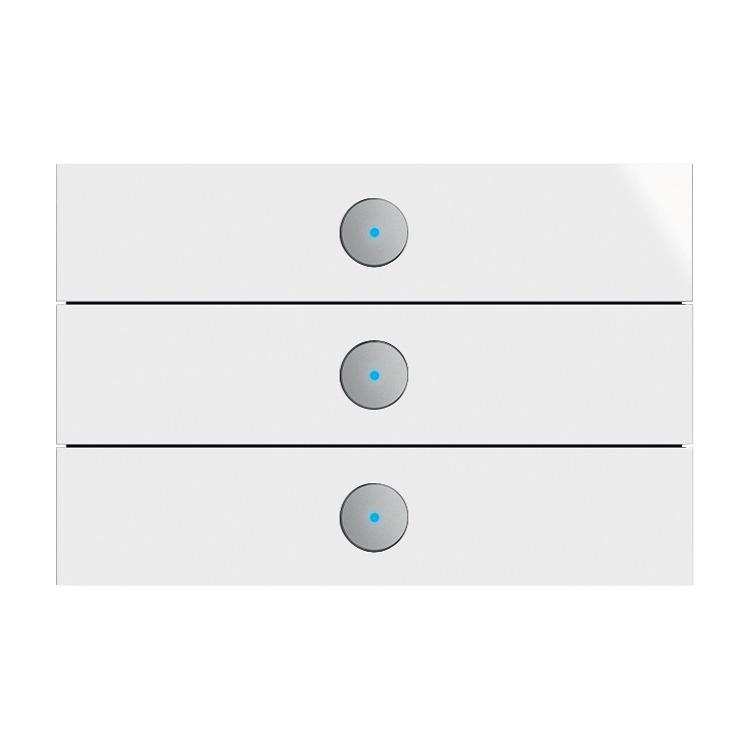

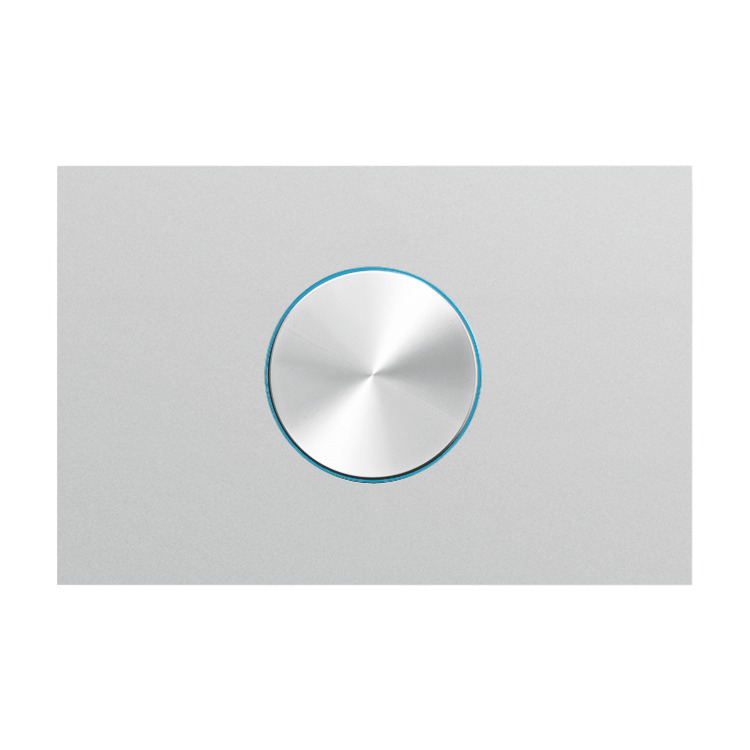

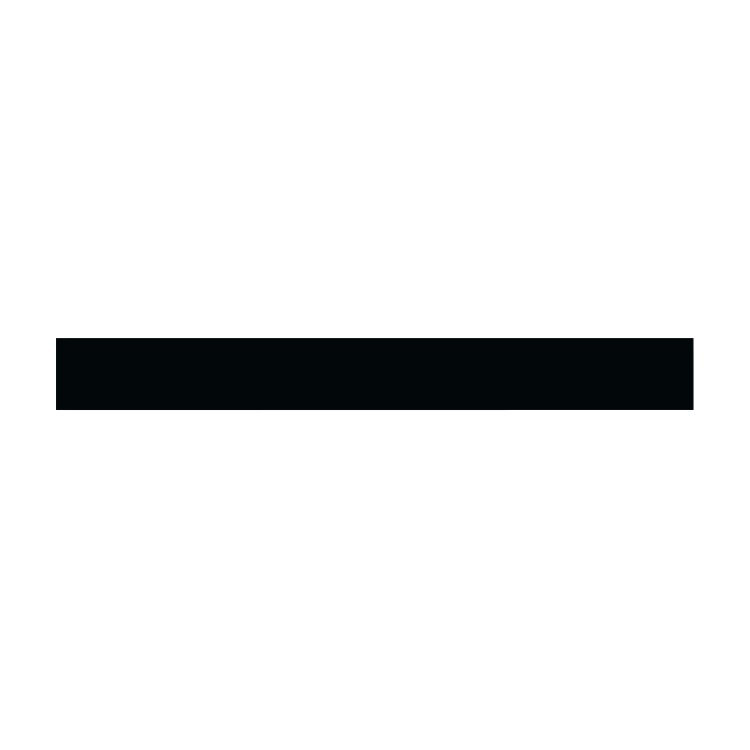

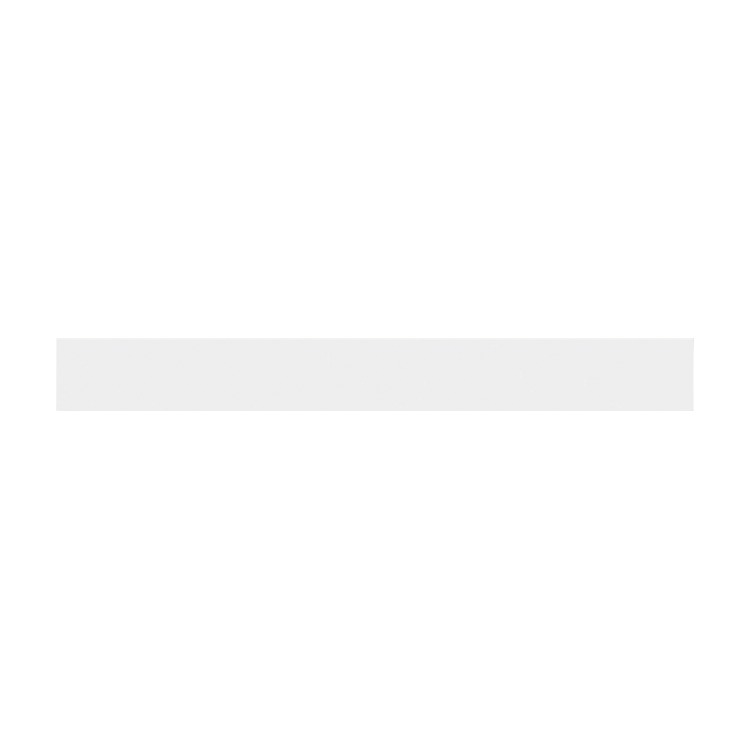

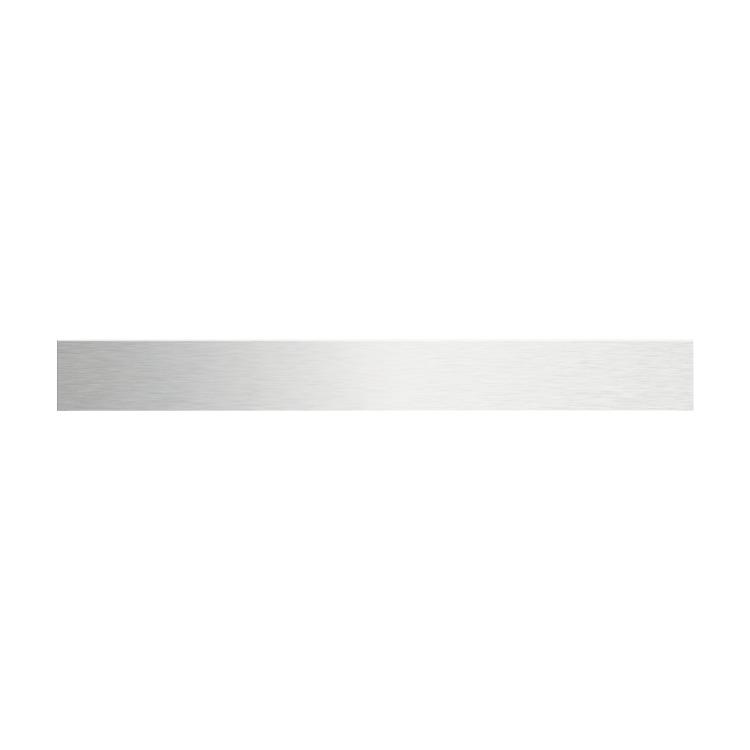

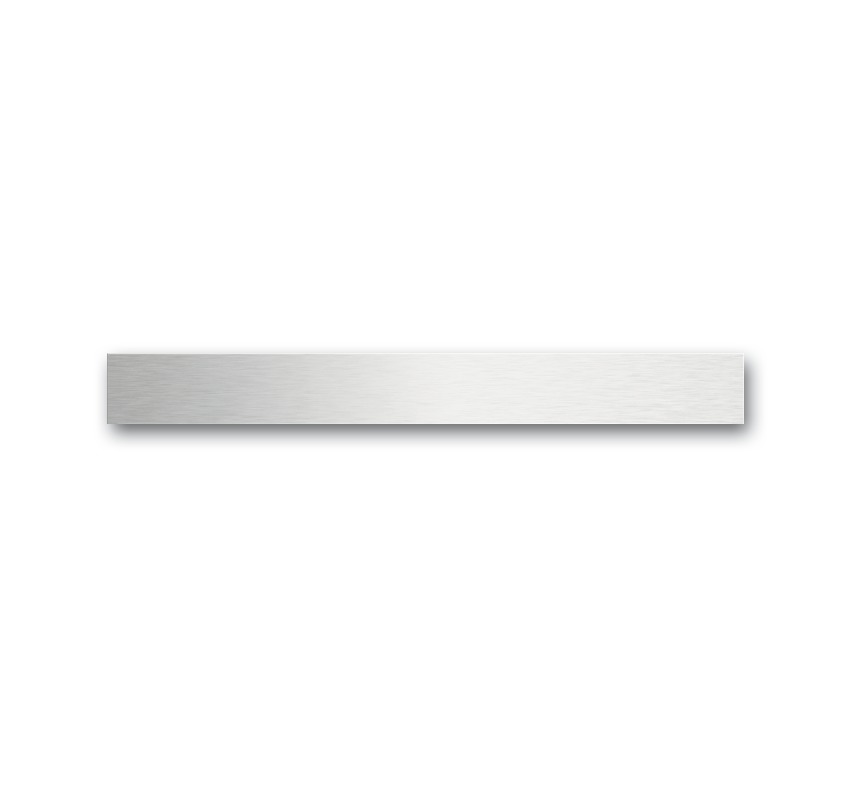

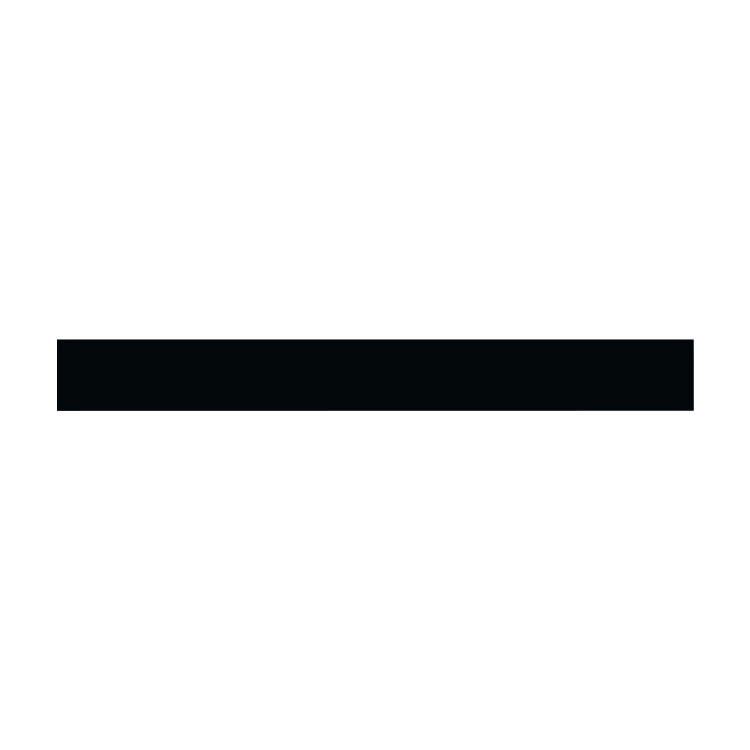

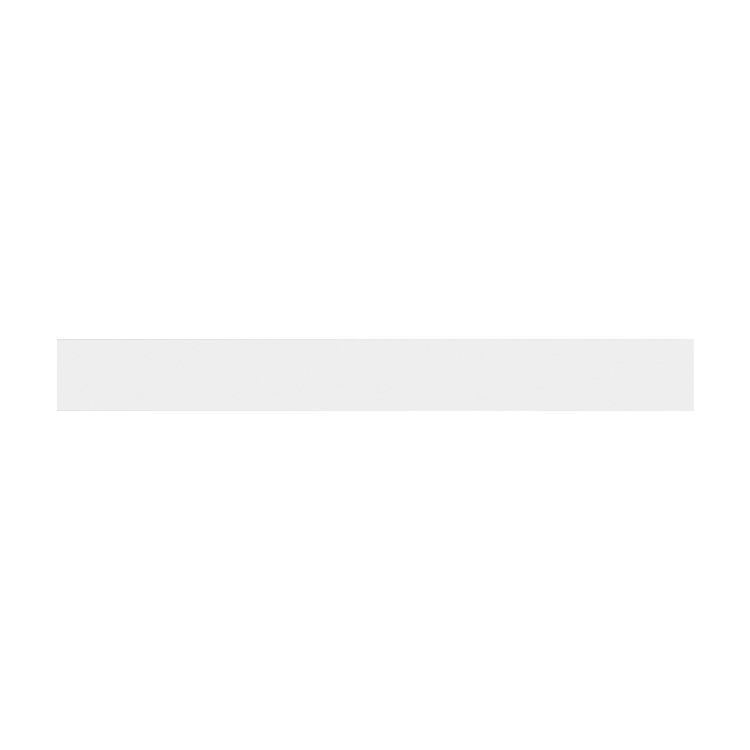

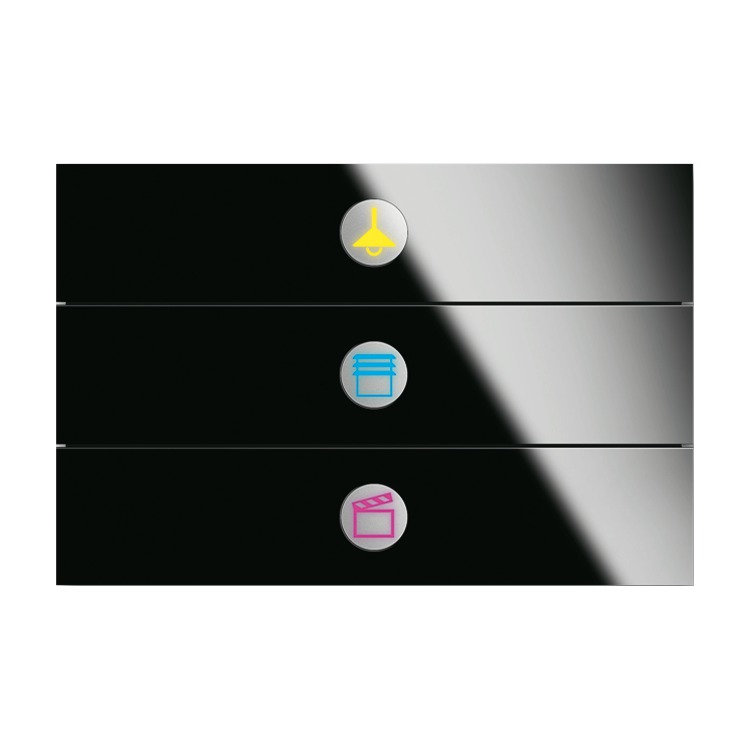

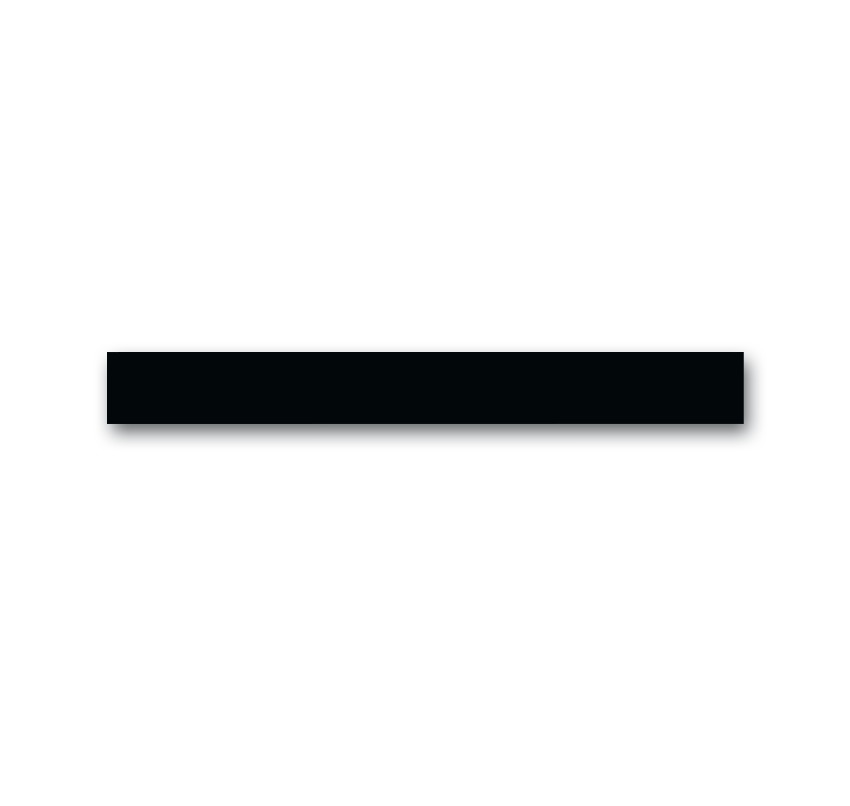

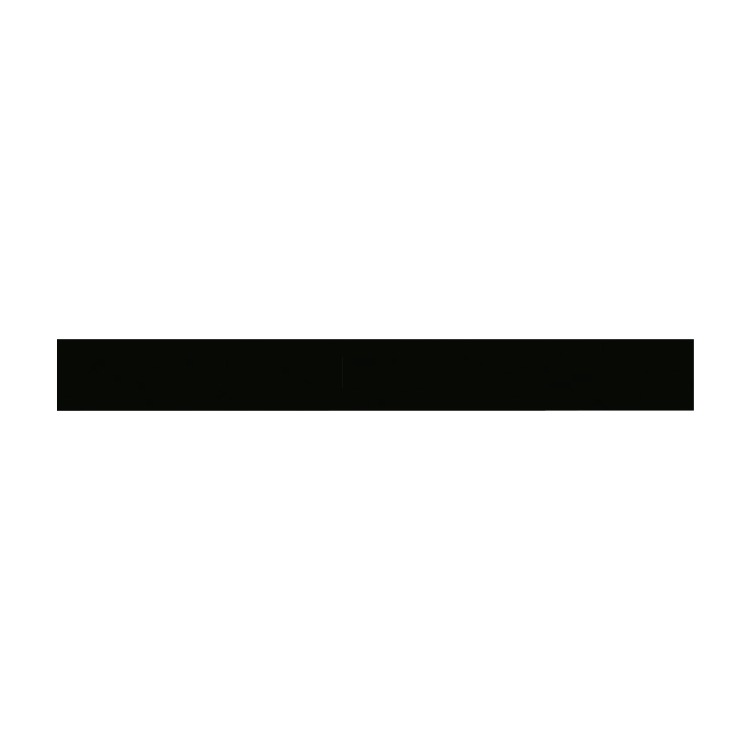

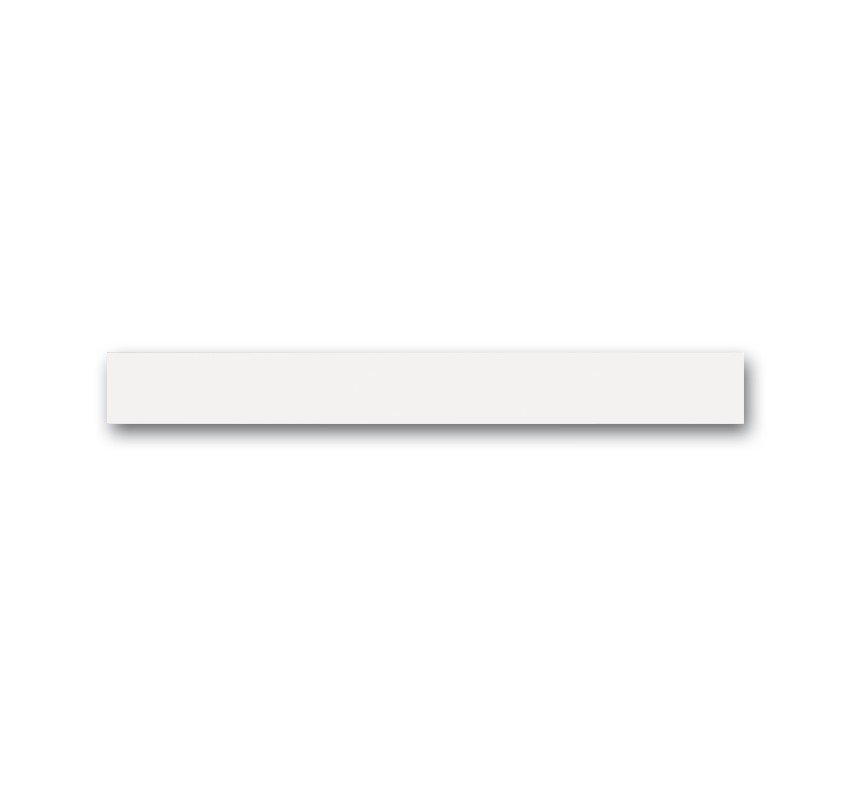

• Support frame for Busch-priOn^® for the accommodation and termination of a rotary control element (6341-xxx-101), 1gang control element (6340-xxx-101), 3gang control element (6342-xxx-101), flush-mounted Watchdog (6345-xxx-101), standard top end strip (6348-xxx-101), standard bottom end strip (6349-xxx-101), end strip for IR and top proximity sensor (6350-xxx-101), end strip for display, RTC, IR, and proximity sensor (6351-xxx-101 or 6351/08-xxx-101), and bottom temperature sensor end strip (6352-xxx-101).
• For contacting with bus coupler 6120/12-101 or power bus coupler 6120/13.
• For contacting with power mains coupler 6920/13.
• For contacting with switch actuator/blind actuator 6920/40.

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

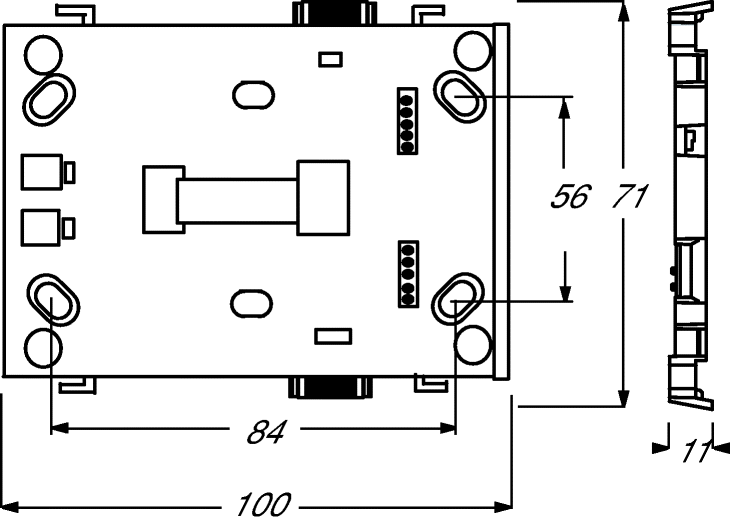

• Dimensions: (L x W x D): 71 mm x 100 mm x 11 mm
