Functions at a glance

• Ordering possible only in connection with the design ID.
• The icons and/or texts are configured by means of a web configuration tool.
• Freely configurable multifunction control element.
• With integrated KNX bus coupler.
• With integrated temperature sensor.
• With integrated proximity function.
• Push switch function: switching / dimming / blind / sending values / scenes etc.
• Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
• The bus connection is provided via the enclosed bus terminal.
• Number of bus subscribers: 1

• Control element: freely programmable touch surfaces
• Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -25 °C - 55 °C
• Transport temperature range: -25 °C - 70 °C

• Dimensions: (L x W x D): 86 mm x 115 mm

• These tailor-made devices are excluded from being exchanged.

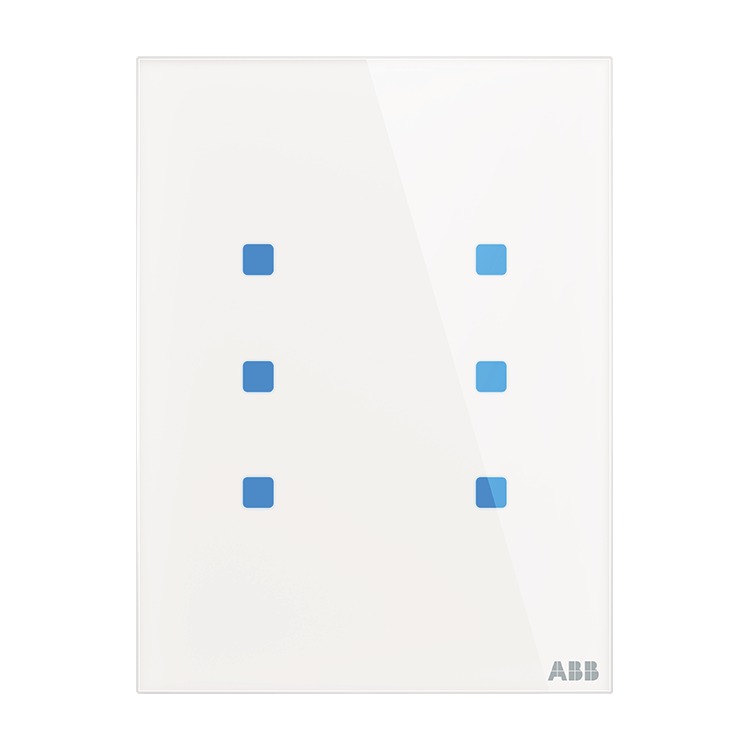

• Figure shows the configured device.
• Ordering possible only in connection with the specified design ID or the design ID received via the configurator.
• For software and description please check the current Online-Catalogue.
• Delivery time for colours glass black (-825) and glass white (-811) approximately 10 working days after the receipt of the order.
• Delivery times for glass colours such as glass Sun, glass Coral, glass Ocean, glass Avocado, glass Oyster, glass Purple approximately 8 weeks after the receipt of the order.
