Touch control element, 2gang
Functions at a glance
- Ordering possible only in connection with the design ID.
- The icons and/or texts are configured by means of a web configuration tool.
- Freely configurable multifunction control element.
- With integrated KNX bus coupler.
- With integrated temperature sensor.
- With integrated proximity function.
- Push switch function: switching / dimming / blind / sending values / scenes etc.
- Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green.
- The bus connection is provided via the enclosed bus terminal.
- Number of bus subscribers: 1
- Control element: freely programmable touch surfaces
- Display elements: Two LED per rocker via separate communication object for status (Red/ Green/ OFF) or orientation light.
- Protection class (device): IP 20
- Temperature range (device): -5 °C - 45 °C
- Storage temperature range: -25 °C - 55 °C
- Transport temperature range: -25 °C - 70 °C
- Dimensions: (L x W x D): 115 mm x 86 mm
- These tailor-made devices are excluded from being exchanged.

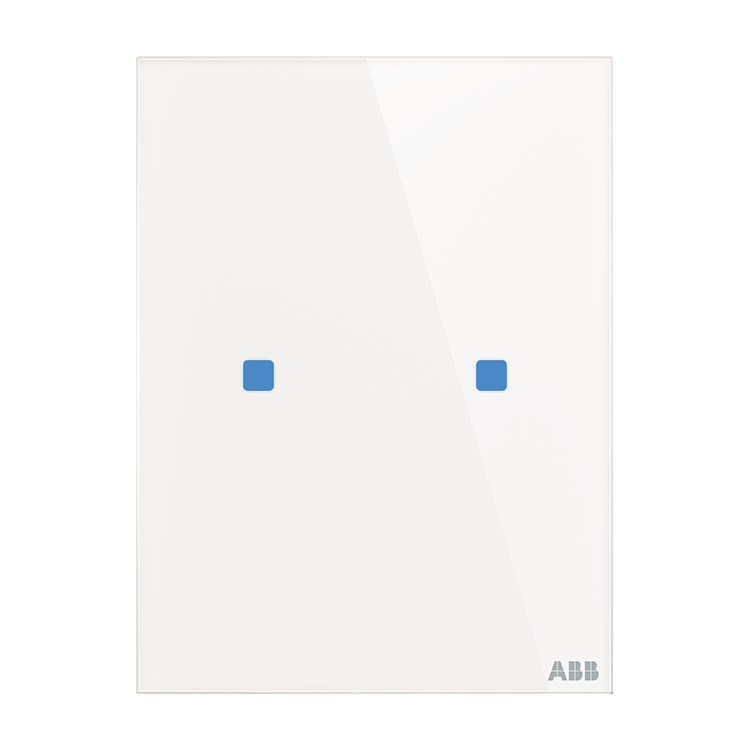

- Figure shows the configured device.
- Ordering possible only in connection with the specified design ID or the design ID received via the configurator.
- For software and description please check the current Online-Catalogue.
- Delivery time for colours glass black (-825) and glass white (-811) approximately 10 working days after the receipt of the order.
- Delivery times for glass colours such as glass Sun, glass Coral, glass Ocean, glass Avocado, glass Oyster, glass Purple approximately 8 weeks after the receipt of the order.
- Article is also available as standard device with standard ICON with Design ID F5XVP5T8 (white glass 811) or ID F5XVP59W (black glass 825).
|Customs tariff number:||85365080|
|Price:||237,00 EUR plus VAT|
|Info sheet:||Download PDF|
