Functions at a glance

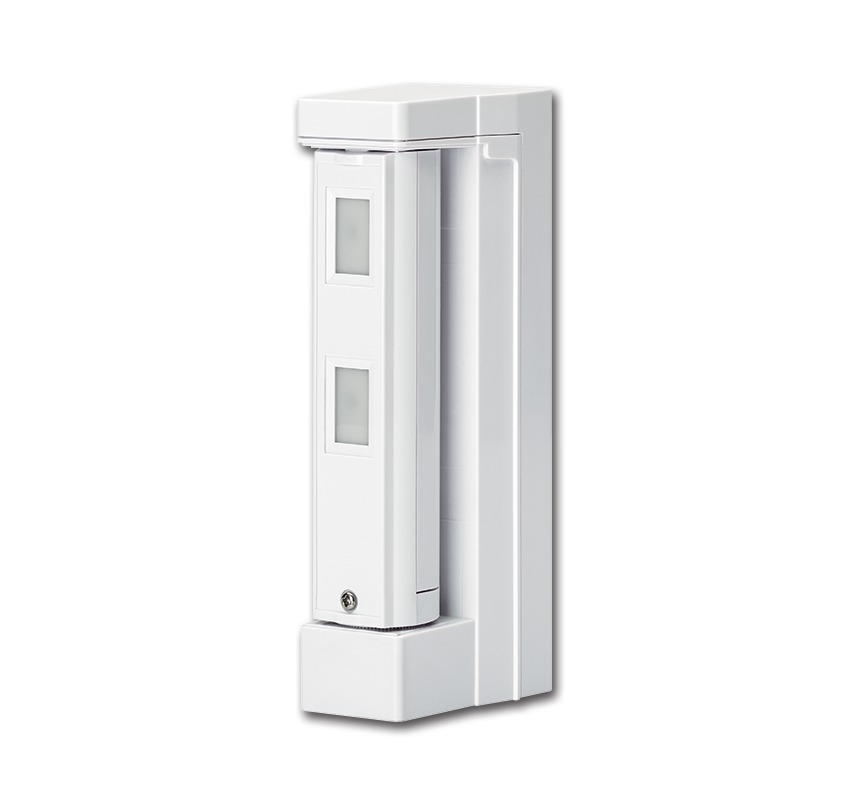

  • Infrared compact detector for Busch-secure@home.
  • For the detection of movement in small detection ranges.
  • Adjustable detection range: 2 m or 5 m
  • Detection angle: 5° (180° swivelling capacity)
  • With time-delayed triggering of the alarm (adjustable between 0 to 90 seconds).
  • With anti-masking function (cover monitoring).
  • Radio range in free field: 300 m
  • Radio frequency: 868 MHz
  • Battery operated.
  • Power supply: lithium battery 3 V, 1.4 Ah (included in the scope of delivery).
  • Battery service life: 4 years
  • Sabotage protection: monitoring of housing
  • Surface mounting
  • Protection class (device): IP 55
  • Temperature range (device): -15 °C - 55 °C
  • Dimensions: (L x W x D): 95 mm x 35 mm x 85 mm

    Order details

    Article No.:SMD-W5.11A
    Order No.:2CSY255381R1203
    EAN:8012542553816
    Customs tariff number:85389099
    Preisgruppe:46
    Preis:449,00 EUR plus VAT
    Info sheet:Download PDF
