Functions at a glance

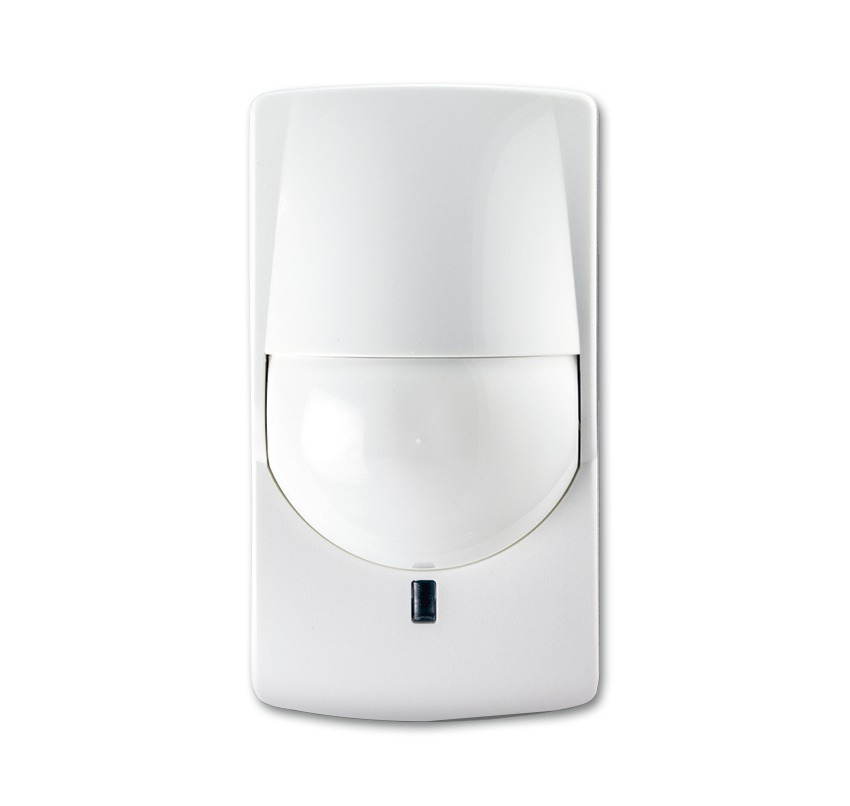

  • Passive infrared movement detector for Busch-secure@home.
  • For the detection of movement.
  • Adjustable detection range (11 m at 90° and 17 m at 10°).
  • Battery operated.
  • Power supply: lithium battery 3 V, 1.4 Ah (included in the scope of delivery).
  • Battery service life: 4 years
  • Radio range in free field: 300 m
  • Radio frequency: 868 MHz
  • With time-delayed triggering of the alarm (adjustable between 0 to 90 seconds).
  • With dual sabotage protection (wall and housing).
  • Permanent monitoring of the state of the battery and the communication with the system controller.
  • Surface mounting
  • Protection class (device): IP 30
  • Temperature range (device): -5 °C - 45 °C
  • Dimensions: (L x W x D): 62 mm x 114 mm x 50 mm

    Order details

    Article No.:SMD-W1.11A
    Order No.:2CSY235881R1105
    EAN:8012542358817
    Customs tariff number:85365080
    Preisgruppe:46
    Preis:149,00 EUR plus VAT
    Info sheet:Download PDF
