Functions at a glance

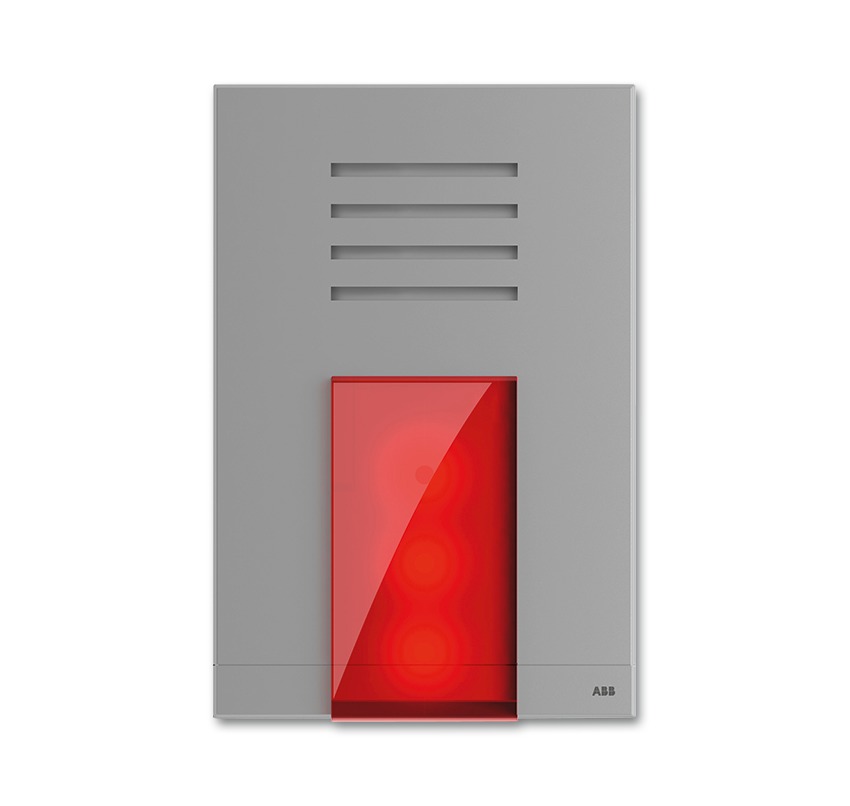

  • External siren for Busch-secure@home.
  • For the acoustic and visual message of an alarm.
  • Alarm tone und LED signal behaviour adjustable on the system side.
  • With dual sabotage protection (wall and housing).
  • Battery operated.
  • Power supply: battery pack LR20 7.5 V, 12 Ah (included in the scope of delivery).
  • Battery life: 3 years
  • Permanent monitoring of the state of the battery and the communication with the system controller.
  • Radio range in free field: 300 m
  • Radio frequency: 868 MHz
  • Complies with EN 50131-1 and EN 50131-4 standards.
  • Environmental class: III, safety degree: 2
  • Volume of acoustic signalling: 100 dBA
  • Surface mounting
  • Protection class (device): IP 55
  • Temperature range (device): -20 °C - 55 °C
  • Dimensions: (L x W x D): 330 mm x 210 mm x 155 mm
  • Available from August 2019.

Order details

Article No.:SSD-W1.11C
Order No.:2CSY255471R1502
Customs tariff number:85311030
Preis:329,00 EUR plus VAT
Info sheet:Download PDF


Instruction manual
