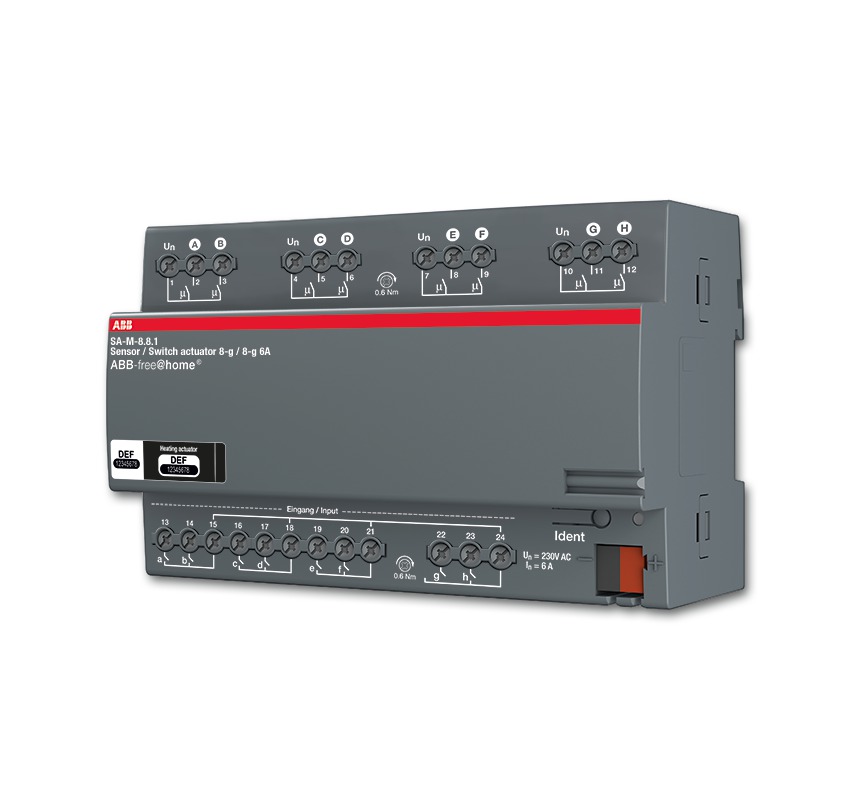

Sensor/switch actuator, 8/8gang
for ABB-free@home®

Functions at a glance

  • Combination device with 8 binary inputs and 8 switch actuators.
  • Conventional push-buttons or auxiliary contacts can be connected to 8 channels. The information of the contact enquiry can be used for activating ABB-free@home® actuators or for recording status information.
  • The contact polling voltage is made available by the device itself.
  • Maximum cable length at a cable cross-section of 1.5 mm² < 100 m
  • For switching 8 independent 230 V~ loads.
  • Bus voltage: 24 V
  • Outputs: 8 Normally open contact, potential free
  • suitable for: AC1
    • Rated current: 6 A, cos φ0.8
  • suitable for: AC3
    • Rated current: 6 A, cos φ0.45
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 144 mm x 64.5 mm
  • Module width: 8
  • No additional commissioning software is required.
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6251/8.8
    Order No.:2CKA006220A0024
    EAN:4011395180396
    Customs tariff number:85389091
    Price group:25
    Price:388,00 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    Wiring diagram
