Functions at a glance

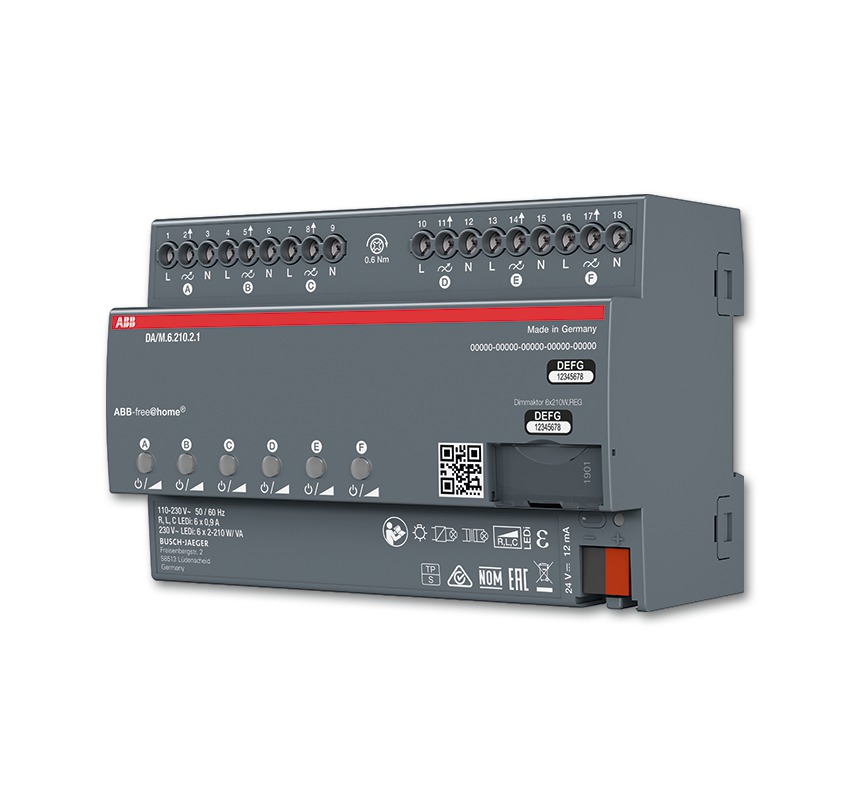

• Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi).
• Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps.
• Automatic load detection (can be deactivated).
• Separate N-connection per channel.
• Parallel connection of the outputs possible to increase the output power.
• Outputs can be connected in parallel in any configuration.
• Minimum load: 2 W.
• Manual operation on device also possible without bus voltage or in an unprogrammed status.
• Programming of the device also possible without applied 230V supply voltage.
• With integrated bus coupler.
• Nominal power at 230 V~ mains voltage:
• 230 V~ incandescent and halogen lamps: 6 x 210 W/VA to 1 x 800 W/VA.
• Dimmable 230 V~ LEDi: 6 x 210 W/VA to 1 x 800 W/VA in trailing edge control, 6 x 80 W/VA to 1 x 240 W/VA in leading edge control.
• Inductive L-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA.
• Electronic C-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA.
• Electronic LC-transformers with LED/low-voltage halogen lamp: 6 x 80 W/VA to 1 x 240 W/VA.

• Control element: One LED button per channel (including a colour status indication) for switching ON and OFF, as well as dimming up and down.

• Bus voltage: 24 V
• Rated voltage: 110 V~230 V~, +10 % / -10 %
• Rated frequency: 50 Hz / 60 Hz

• Outputs: 6 dimming channel

• Protection class (device): IP 20
• Temperature range (device): -5 °C - 45 °C
• Storage temperature range: -20 °C - 70 °C

• Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
• Module width: 8
• Division units: 8
• Mounting depth: 68 mm

• Programming only with bus voltage applied via the web interface of the System Access Point.
• Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
• Recommendation: Always use lamps of the same type and manufacturer.
