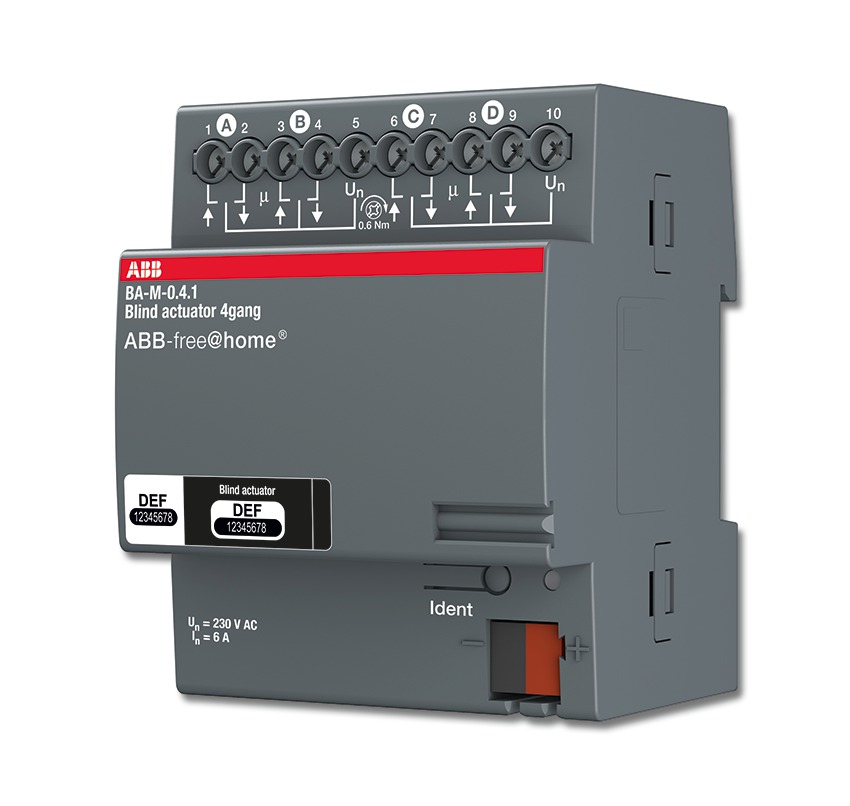

Blind actuator, 4gang
for ABB-free@home®

Functions at a glance

  • For controlling 4 independent blind or roller shutter drives.
  • The outputs are inversely blocked.
  • The bus can be connected via enclosed terminal block.
  • Bus voltage: 24 V
  • Power dissipation: 2 W
  • Outputs: 4
  • suitable for: AC3
    • Rated current: 6 A, cos φ0.45
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
  • Module width: 4
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6253/0.4
    Order No.:2CKA006220A0029
    EAN:4011395180440
    Customs tariff number:85389091
    Price group:25
    Price:217,00 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    Wiring diagram
