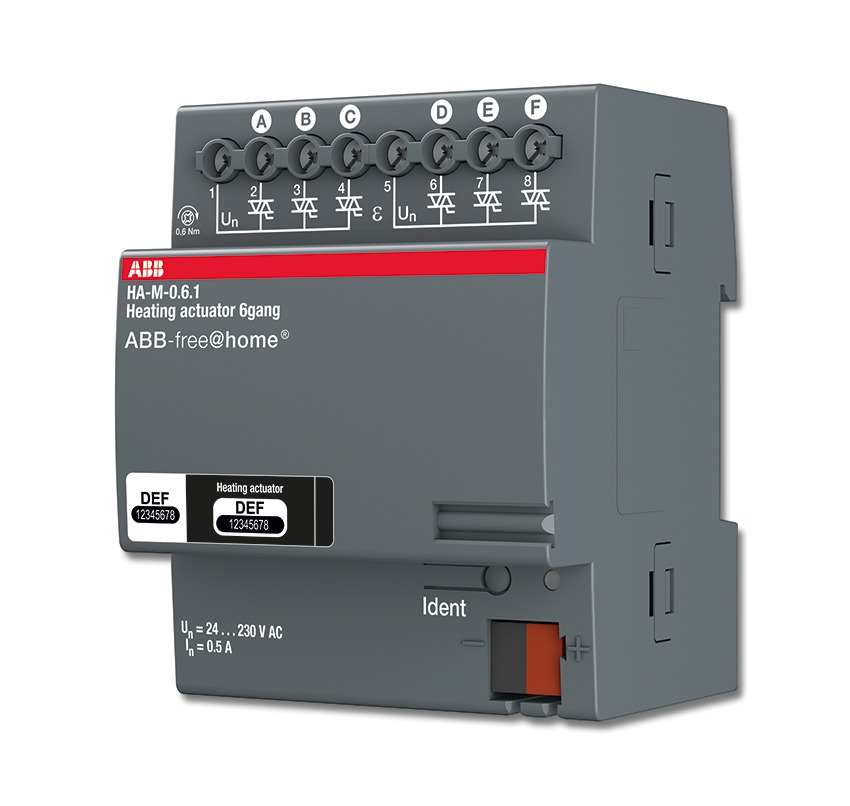

Heating actuator, 6gang
for ABB-free@home®

Functions at a glance

  • For controlling thermoelectric actuating drives in heating/cooling systems.
  • Up to 3 actuating drives 6164/10-102 or 1 actuating drive 6164/11-102 can be connected per output.
  • The outputs are protected against short-circuit and overload.
  • The bus can be connected via enclosed terminal block.
  • Bus voltage: 24 V
  • Power dissipation: 2 W
  • Outputs: 6 Semiconductor outputs, 24 V~ - 230 V~
  • suitable for: ohmic
    • Rated current: 160 mA
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 55 °C
  • Transport temperature range: -25 °C - 70 °C
  • Dimensions: (L x W x D): 90 mm x 72 mm x 64 mm
  • Module width: 4
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.

    Order details

    Article No.:6254/0.6
    Order No.:2CKA006220A0025
    EAN:4011395180419
    Customs tariff number:85389091
    Price group:25
    Price:198,00 EUR plus VAT
    Info sheet:Download PDF
    Dimensions
    Wiring diagram
