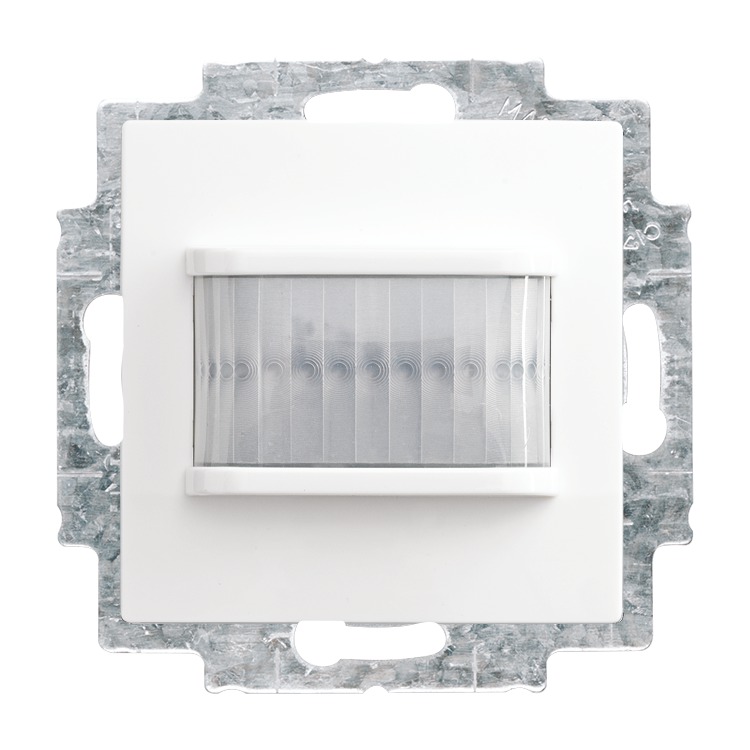

Movement detector
for ABB-free@home®

Functions at a glance

  • With select lens for detection with animal access.
  • For automatic switching of ABB-free@home® actuators dependent on movement and brightness.
  • Switch-off delay of the actuator can be programmed via the web interface of the System Access Point.
  • The bus can be connected via enclosed terminal block.
  • Protection class (device): IP 20
  • Temperature range (device): -5 °C - 45 °C
  • Storage temperature range: -25 °C - 70 °C
  • Detection range: frontal: 6 m, lateral: 3 m
  • Detection range 2:
  • Brightness limit value: 1 Lux
  • Detection angle: 180 °
  • Dimensions: (L x W x D): 71 mm x 71 mm x 30 mm
  • Position for installation: vertical
  • Mounting height: 1.1 m - 1.3 m
  • Programming only with bus voltage applied via the web interface of the System Access Point.
  • Additional information about commissioning and operation is contained in the system manual and the online operating manual of the current Online-Catalogue.
  • RAL colour number: Ähnlich 9010

Order details

Article No.:6225/1.0-914
Order No.:2CKA006220A0369
Customs tariff number:85365080
Price group:24
Price:156,00 EUR plus VAT
Info sheet:Download PDF
Wiring diagram
